1571110000 - Weidmüller

Description: PCB connector (board connection), 320 V, 18 A, Pitch in mm: 5.00, Number of poles: 12, THT solder connection, Box

Download 1571110000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1571110000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

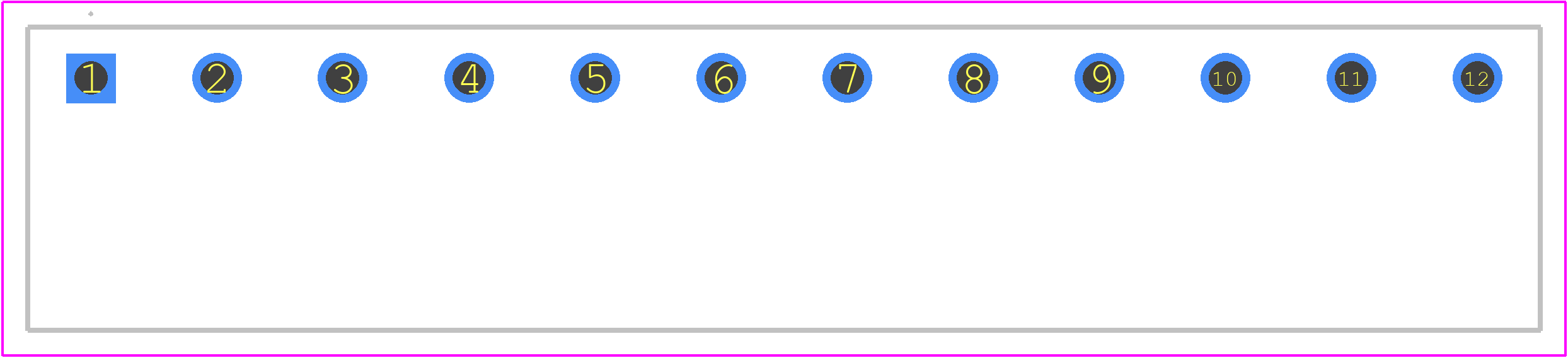

1571110000 - Weidmüller PCB footprint - Other - Other - 1571110000
click to zoom
3D Models
1571110000 - Weidmüller - 3D model - Other - 1571110000
click to zoom

1571110000 Details

  • Manufacturer Part Number:

    1571110000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: 94V-0, POLYBUTYLENE TEREPHTHALATE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    12

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; IEC; UL; VDE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK
