15724162701000 - HARTING

Description: Connectors, Male connector, Reflow soldering termination (SMT), Rated current: ‌21.5 A, Contacts: 20, Straight, Copper alloy, Noble metal over Ni, Mating side, Sn over Ni, Termination side, Performance level: 1, Liquid crystal polymer (LCP), Black

Download 15724162701000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

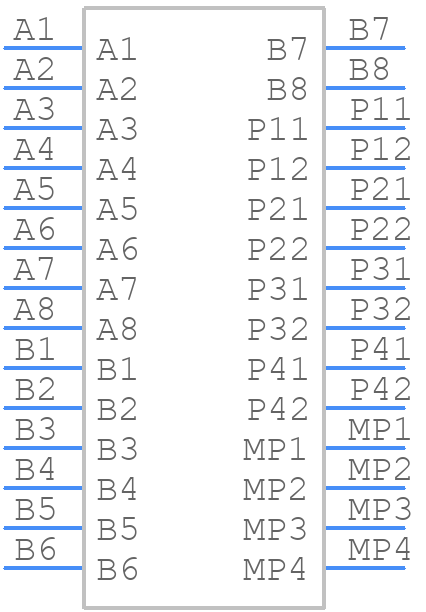

15724162701000 - HARTING - PCB symbol
click to zoom
PCB Footprints

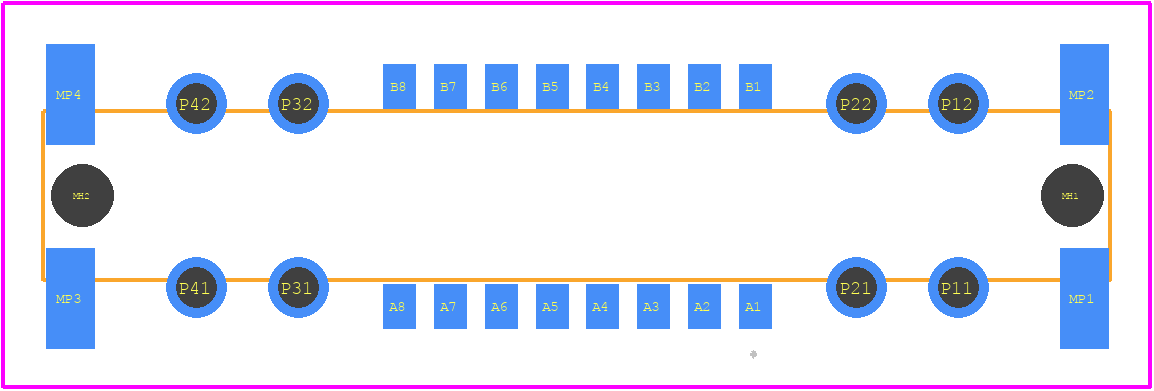

15724162701000 - HARTING PCB footprint - Other - Other - 15724162701000
click to zoom
3D Models
15724162701000 - HARTING - 3D model - Other - 15724162701000
click to zoom

15724162701000 Details

  • Manufacturer Part Number:

    15724162701000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

15724162701000 Overview

Use the download button to access the 15724162701000 schematic symbol, PCB footprint, and 3D model.
