15856262601000 - HARTING

Description: Connectors, Female connector, Reflow soldering termination (SMT), Rated current: ‌22.5 A, Contacts: 32, Angled, Copper alloy, Noble metal over Ni, Mating side, Sn over Ni, Termination side, Performance level: 1, Liquid crystal polymer (LCP), Black

Download 15856262601000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

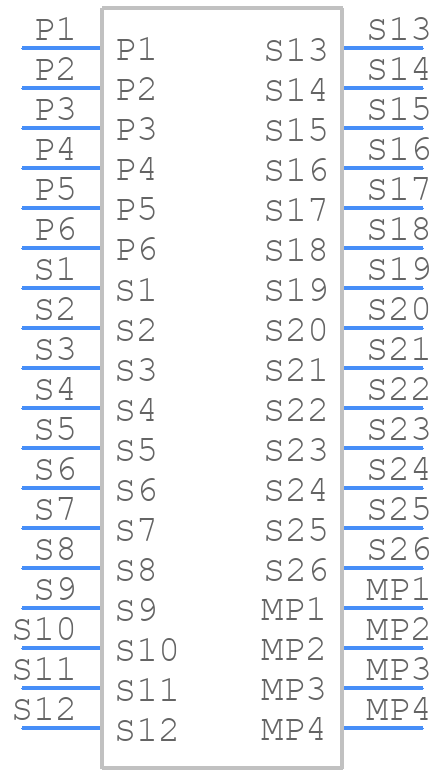

15856262601000 - HARTING - PCB symbol
click to zoom
PCB Footprints
15856262601000 - HARTING PCB footprint - Other - Other - 15856262601000-2
click to zoom
3D Models
15856262601000 - HARTING - 3D model - Other - 15856262601000-2
click to zoom

15856262601000 Details

  • Manufacturer Part Number:

    15856262601000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

15856262601000 Overview

Use the download button to access the 15856262601000 schematic symbol, PCB footprint, and 3D model.
