1597270000 - Weidmüller

Description: PCB connector (board connection), 160 V, 17 A, Pitch in mm: 3.50, Number of poles: 8, THT solder connection, Box

Download 1597270000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1597270000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

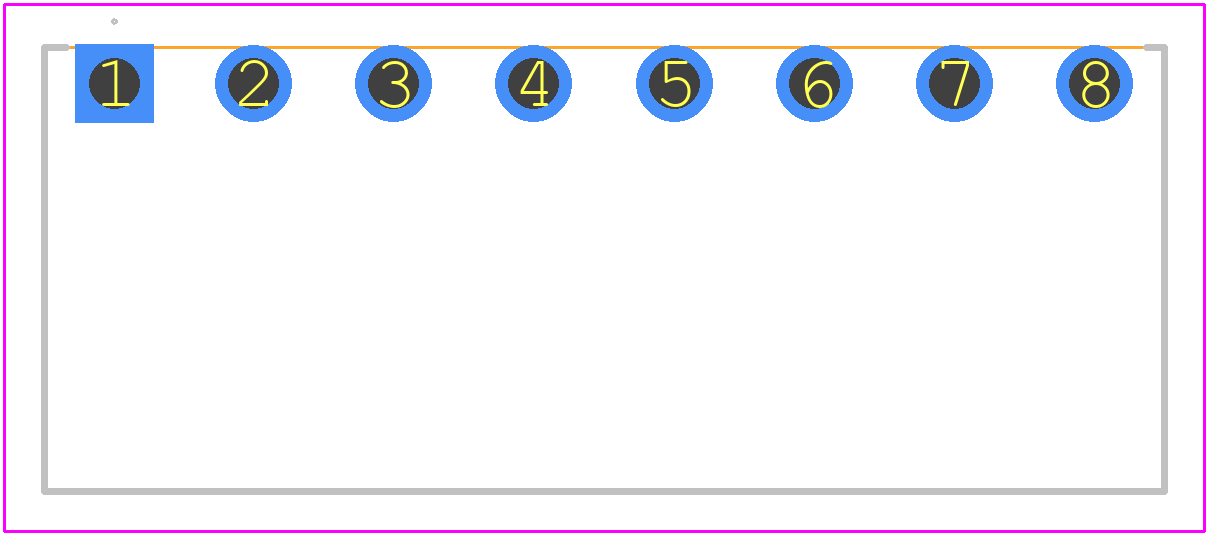

1597270000 - Weidmüller PCB footprint - Other - Other - 1597270000
click to zoom
3D Models
1597270000 - Weidmüller - 3D model - Other - 1597270000
click to zoom

1597270000 Details

  • Manufacturer Part Number:

    1597270000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    8

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; IEC; PCT; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1597270000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1597270000 is -40°C to 85°C, making it suitable for use in a wide range of industrial applications.
  • Yes, the 1597270000 is designed for DIN rail mounting, making it easy to install and integrate into existing systems.
  • The maximum current rating of the 1597270000 is 10A per contact, making it suitable for use in applications that require high current handling.
  • Yes, the 1597270000 is RoHS and REACH compliant, making it suitable for use in applications that require compliance with these regulations.
  • The 1597270000 has an IP20 rating, providing protection against solid objects and fingers, but not against water or moisture.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1597270000 Overview

Use the download button to access the 1597270000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 15972, or try a keyword search, such as Terminals and Terminal Blocks

Parts related to 1597270000
