15KPA036C-SD-Q - Bourns

15KPA036C-SD-Q Frequently Asked Questions (FAQs)

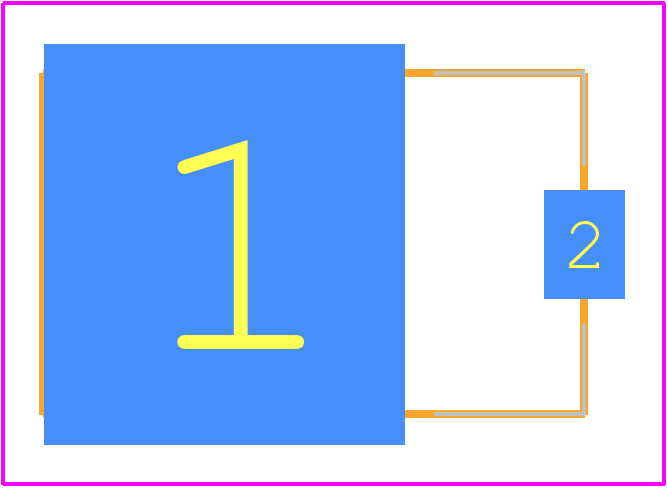

• What is the recommended PCB layout and land pattern for optimal performance?
  Bourns provides a recommended PCB layout and land pattern in their application notes. It's essential to follow these guidelines to ensure proper thermal management and minimize electrical noise.
• How do I ensure the TVS diode is properly soldered and avoids solder bridging?
  Use a soldering iron with a controlled temperature, and apply a small amount of solder paste to the pads. Ensure the TVS diode is properly aligned and seated on the PCB. Inspect the solder joints under a microscope to verify the absence of solder bridging.
• What is the maximum allowable voltage transients for the 15KPA036C-SD-Q?
  The 15KPA036C-SD-Q is designed to withstand voltage transients up to 36V. However, it's essential to consider the specific application and ensure the TVS diode is not subjected to repetitive or sustained overvoltage conditions.
• Can I use the 15KPA036C-SD-Q in a high-temperature environment?
  The 15KPA036C-SD-Q is rated for operation up to 150°C. However, it's crucial to consider the derating curves and ensure the TVS diode is not subjected to excessive temperatures, which can affect its performance and lifespan.
• How do I select the correct TVS diode for my specific application?
  Consider the maximum voltage, current, and power requirements of your application. Evaluate the TVS diode's voltage rating, peak pulse current, and power dissipation capabilities to ensure it meets your application's demands.
