16-600-10 - ARIES

Description: Aries Electronics 2.54mm Pitch 16 Way,Through Hole Mount IC Dip Header, Tin over Nickel Plated Contacts, 2A

Download 16-600-10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
16-600-10 - ARIES - PCB symbol
click to zoom
PCB Footprints

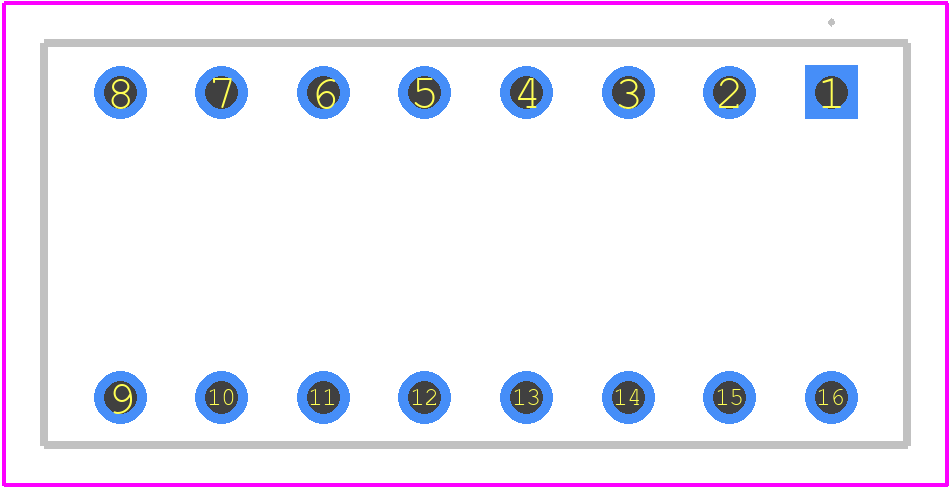

16-600-10 - ARIES PCB footprint - Other - Other - 16-600-10-1
click to zoom
3D Models
16-600-10 - ARIES - 3D model - Other - 16-600-10-1
click to zoom

16-600-10 Details

  • Manufacturer Part Number:

    16-600-10

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.51

  • Manufacturer:

    Aries Electronics Inc

  • YTEOL:

    7

  • Connector Type:

    DIP CONNECTOR

  • Contact Finish Mating:

    TIN

  • Contact Finish Termination:

    TIN

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    16

  • UL Flammability Code:

    94V-0

16-600-10 Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for the 16-600-10 is -40°C to 100°C.
  • Yes, the 16-600-10 is designed to withstand high-vibration environments, making it suitable for industrial and automotive applications.
  • Yes, the 16-600-10 is compatible with lead-free soldering processes, making it RoHS-compliant.
  • The typical lead time for delivery of the 16-600-10 is 6-8 weeks, but this may vary depending on the quantity and availability.
  • Yes, Aries Electronics Inc offers customization options for the 16-600-10, including custom pinouts and packaging. Contact their sales team for more information.
