16-823-90 - ARIES

Description: 16 (2 x 8) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole, Right Angle, Horizontal

Download 16-823-90 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
16-823-90 - ARIES - PCB symbol
click to zoom

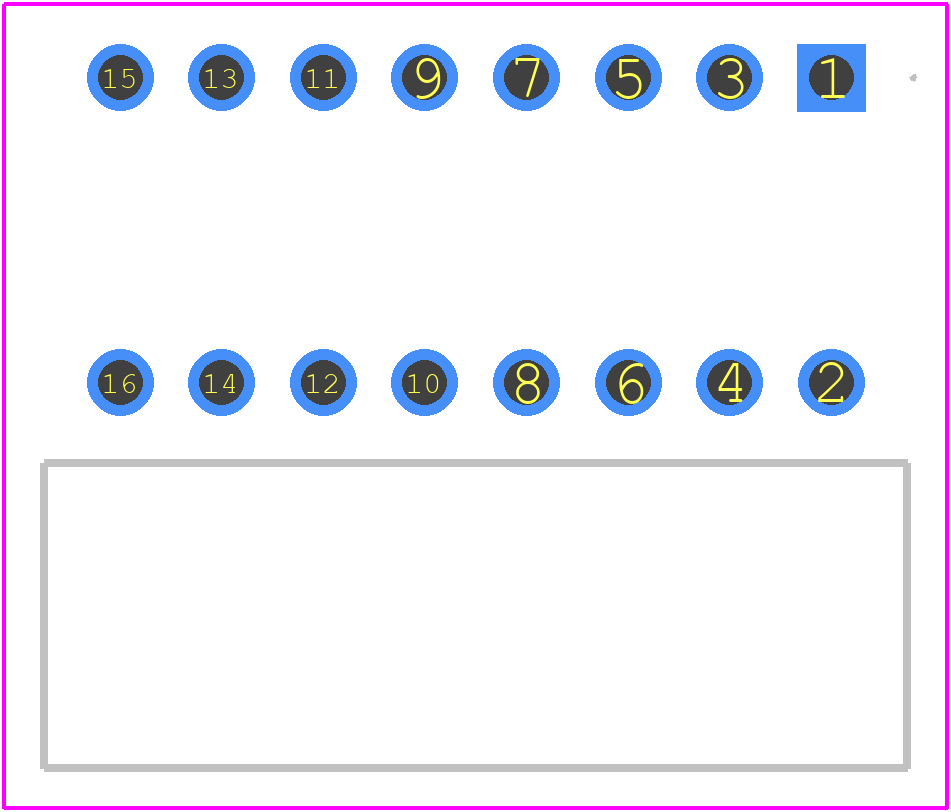

PCB Footprints
16-823-90 - ARIES PCB footprint - Other - Other - 16-823-90-1
click to zoom
3D Models
16-823-90 - ARIES - 3D model - Other - 16-823-90-1
click to zoom

16-823-90 Details

  • Manufacturer Part Number:

    16-823-90

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Aries Electronics Inc

  • YTEOL:

    7.3

  • Additional Feature:

    STANDARD: UL 94V-0

  • Body Breadth:

    0.4 inch

  • Body Depth:

    0.68 inch

  • Body Length:

    0.85 inch

  • Contact Finish Mating:

    GOLD (10) OVER NICKEL

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Material:

    P-CUSN

  • Contact Style:

    SQ PIN-SKT

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP16

  • Housing Material:

    NYLON46

  • JESD-609 Code:

    e4

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Style:

    RIGHT ANGLE

  • Number of Contacts:

    16

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    0.30000000000000004 mm

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

16-823-90 Frequently Asked Questions (FAQs)

  • The recommended torque is 6-8 in-lbs (0.7-0.9 Nm) for the screws on the 16-823-90 connector.
  • Yes, the 16-823-90 connector is designed to withstand high-vibration environments and is suitable for applications such as aerospace, automotive, and industrial control systems.
  • Yes, the 16-823-90 connector is designed to operate in harsh environments, including temperatures ranging from -55°C to 125°C and humidity up to 95% RH.
  • The 16-823-90 connector has a mating cycle life of 500 cycles minimum, making it suitable for applications that require frequent connections and disconnections.
  • Yes, the 16-823-90 connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in European Union countries.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

16-823-90 Overview

Use the download button to access the 16-823-90 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 16-82, or try a keyword search, such as Sockets and Chip Carriers
