1601800000 - Weidmüller

Description: PCB connector (board connection), 250 V, 11 A, Pitch in mm: 5.08, Number of poles: 6, THT solder connection, Box

Download 1601800000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1601800000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

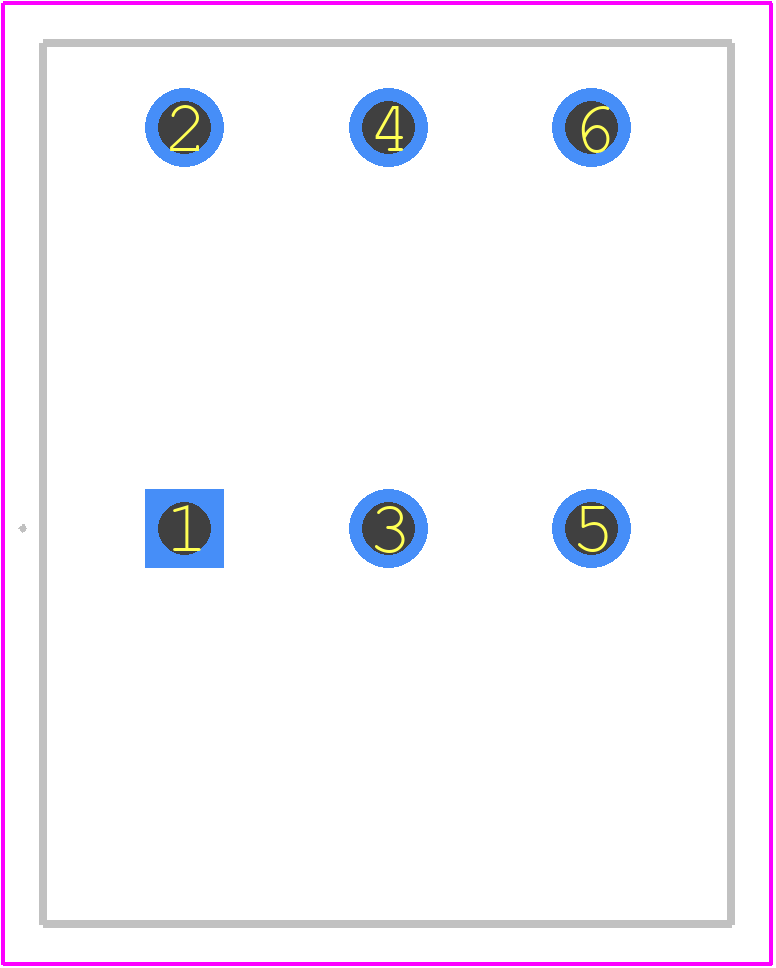

1601800000 - Weidmüller PCB footprint - Other - Other - 1601800000-1
click to zoom
3D Models
1601800000 - Weidmüller - 3D model - Other - 1601800000-1
click to zoom

1601800000 Details

  • Manufacturer Part Number:

    1601800000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7.75

  • Additional Feature:

    STANDARD: UL 94V-0, POLYBUTYLENE TEREPHTHALATE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    6

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; DIN; IEC; PCT; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1601800000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1601800000 is -40°C to 85°C, as specified by Weidmüller.
  • Yes, the 1601800000 is compatible with various industrial automation protocols, including EtherNet/IP, PROFINET, and Modbus TCP.
  • The maximum cable length supported by the 1601800000 is 100 meters, depending on the specific application and cable type.
  • Yes, the 1601800000 has built-in surge protection to ensure reliable operation in harsh industrial environments.
  • Yes, the 1601800000 is designed for use in hazardous locations, including explosion-proof areas, and meets relevant safety standards such as ATEX and IECEx.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1601800000 Overview

Use the download button to access the 1601800000 schematic symbol, PCB footprint, and 3D model.
