1601810000 - Weidmüller

Description: PCB connector (board connection), 250 V, 11 A, Pitch in mm: 5.08, Number of poles: 8, THT solder connection, Box

Download 1601810000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1601810000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

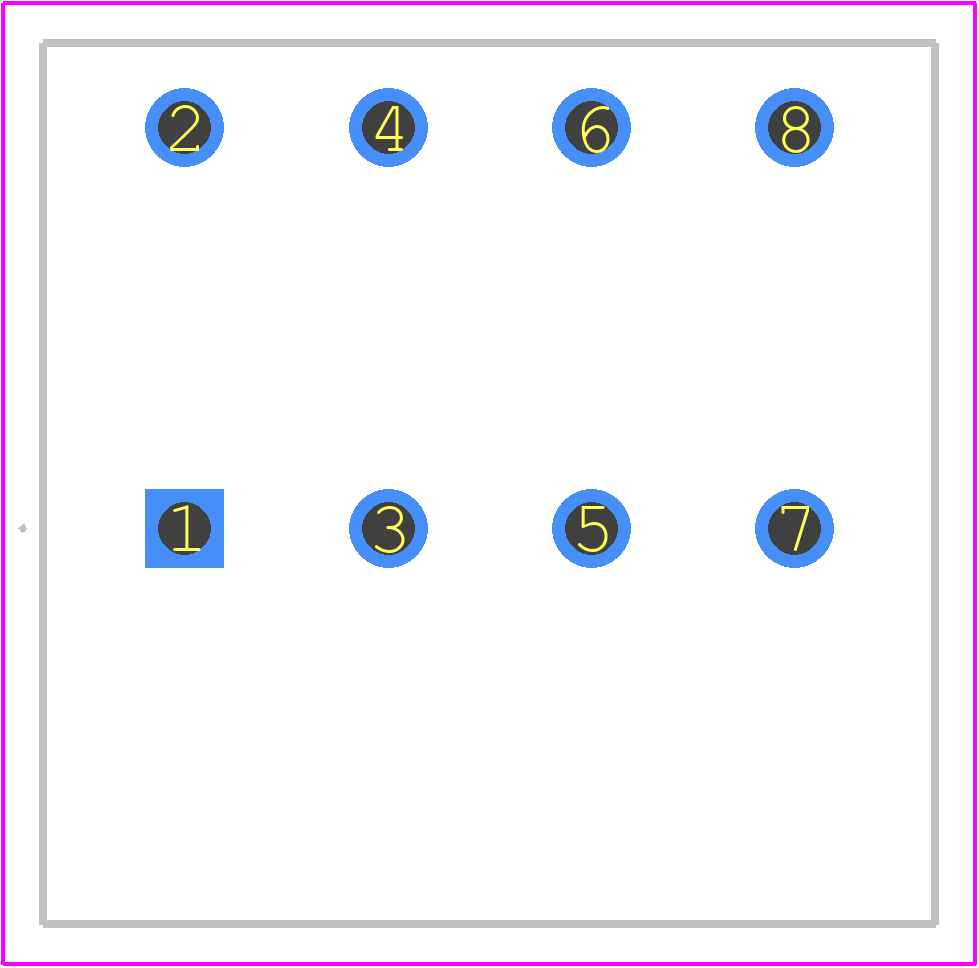

1601810000 - Weidmüller PCB footprint - Other - Other - 1601810000-1
click to zoom
3D Models
1601810000 - Weidmüller - 3D model - Other - 1601810000-1
click to zoom

1601810000 Details

  • Manufacturer Part Number:

    1601810000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7.5

  • Additional Feature:

    STANDARD: UL 94V-0, POLYBUTYLENE TEREPHTHALATE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    8

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; DIN; IEC; PCT; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1601810000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1601810000 connector is -40°C to 125°C, making it suitable for use in a wide range of industrial applications.
  • Yes, the 1601810000 connector is designed for outdoor use and has a IP67 rating, which means it is protected against dust and water ingress, making it suitable for harsh environmental conditions.
  • The mating cycle for the 1601810000 connector is 500 cycles, which means it can be connected and disconnected up to 500 times without compromising its performance or reliability.
  • Yes, the 1601810000 connector is designed to withstand high-vibration applications, making it suitable for use in industrial environments where vibration is a concern.
  • Yes, the 1601810000 connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it environmentally friendly and safe for use in the European Union.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1601810000 Overview

Use the download button to access the 1601810000 schematic symbol, PCB footprint, and 3D model.
