1604560000 - Weidmüller

Description: PCB connector (board connection), 160 V, 17 A, Pitch in mm: 3.50, Number of poles: 11, THT solder connection, Box

Download 1604560000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1604560000 - Weidmüller - PCB symbol
click to zoom

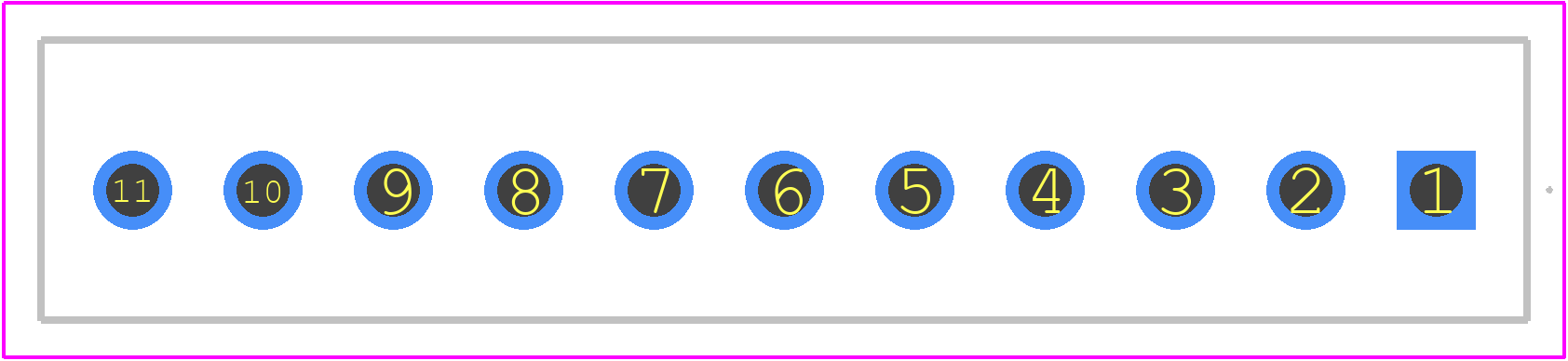

PCB Footprints
1604560000 - Weidmüller PCB footprint - Other - Other - 1604560000-3
click to zoom
3D Models
1604560000 - Weidmüller - 3D model - Other - 1604560000-3
click to zoom

1604560000 Details

  • Manufacturer Part Number:

    1604560000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    8

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    11

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; IEC; PCT; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1604560000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1604560000 connector is -40°C to 125°C, making it suitable for use in a wide range of industrial applications.
  • Yes, the 1604560000 connector is designed to withstand vibration and shock according to IEC 61373 Category II and EN 61373 Category II, making it suitable for use in harsh industrial environments.
  • The 1604560000 connector has an IP67 rating, which means it is protected against dust ingress and can withstand immersion in water up to 1 meter for 30 minutes.
  • The 1604560000 connector is not intended for use in explosive atmospheres and does not have any explosion-proof certifications such as ATEX or IECEx.
  • The recommended torque for the screw terminals of the 1604560000 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and wire size.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1604560000 Overview

Use the download button to access the 1604560000 schematic symbol, PCB footprint, and 3D model.
