1604570000 - Weidmüller

Description: PCB connector (board connection), 160 V, 17 A, Pitch in mm: 3.50, Number of poles: 12, THT solder connection, Box

Download 1604570000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1604570000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

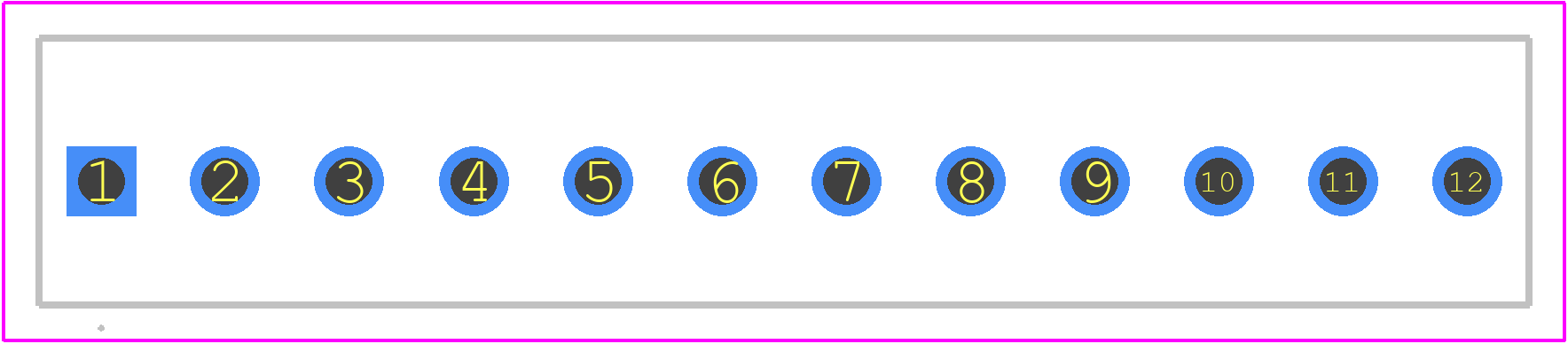

1604570000 - Weidmüller PCB footprint - Other - Other - 1604570000-2
click to zoom
3D Models
1604570000 - Weidmüller - 3D model - Other - 1604570000-2
click to zoom

1604570000 Details

  • Manufacturer Part Number:

    1604570000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    8

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    12

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; IEC; PCT; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1604570000 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
  • Yes, the 1604570000 is designed to withstand vibrations up to 10g according to IEC 60068-2-6. However, it's recommended to consult with Weidmüller's technical support for specific application guidance.
  • The 1604570000 has a protection rating of IP67, making it suitable for outdoor use. However, it's essential to ensure the connector is properly sealed and installed to maintain its environmental rating.
  • While the datasheet specifies a specific wire gauge, it's possible to use a different gauge with proper derating. Consult with Weidmüller's technical support to determine the appropriate derating factor for your specific application.
  • The 1604570000 has an operating temperature range of -40°C to 125°C. However, the maximum operating temperature may vary depending on the specific application and environmental conditions.
