1604590000 - Weidmüller

Description: PCB connector (board connection), 160 V, 17 A, Pitch in mm: 3.50, Number of poles: 14, THT solder connection, Box

Download 1604590000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1604590000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

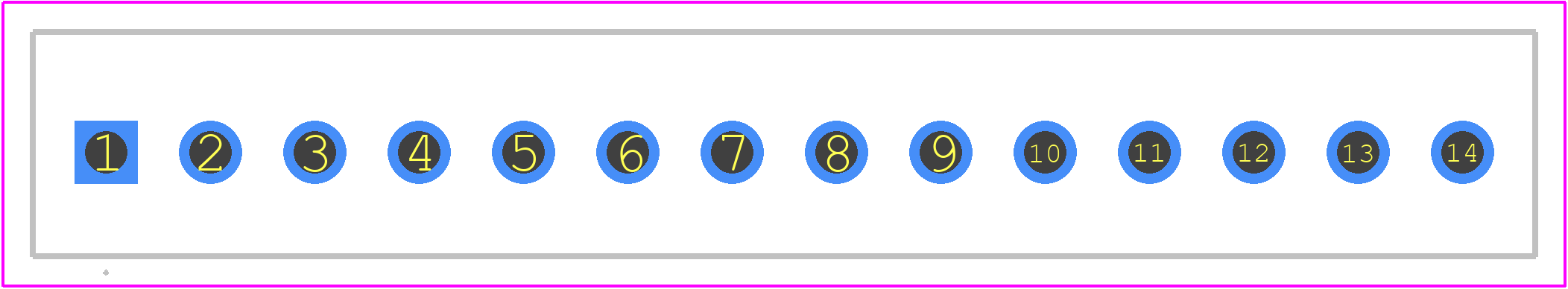

1604590000 - Weidmüller PCB footprint - Other - Other - 1604590000
click to zoom
3D Models
1604590000 - Weidmüller - 3D model - Other - 1604590000
click to zoom

1604590000 Details

  • Manufacturer Part Number:

    1604590000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7.75

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    14

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; IEC; PCT; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1604590000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1604590000 connector is -40°C to 125°C, making it suitable for use in a wide range of industrial applications.
  • Yes, the 1604590000 connector is designed to withstand vibration and shock according to IEC 61373 Cat. 2 and EN 61373 Cat. 2 standards, ensuring reliable connections in harsh environments.
  • The 1604590000 connector has a protection rating of IP67, which means it is protected against dust and temporary immersion in water up to 1 meter for 30 minutes, making it suitable for use in humid or wet environments.
  • The 1604590000 connector has a mating cycle rating of 500 cycles, ensuring reliable connections even in applications where frequent mating and unmating are required.
  • Yes, the 1604590000 connector is designed to be compatible with other Weidmüller products, including their range of connectors, cables, and terminals, making it easy to integrate into existing systems.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1604590000 Overview

Use the download button to access the 1604590000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 16045, or try a keyword search, such as Terminals and Terminal Blocks
