1604850000 - Weidmüller

Description: PCB connector (board connection), 160 V, 17 A, Pitch in mm: 3.50, Number of poles: 10, THT solder connection, Box

Download 1604850000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1604850000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

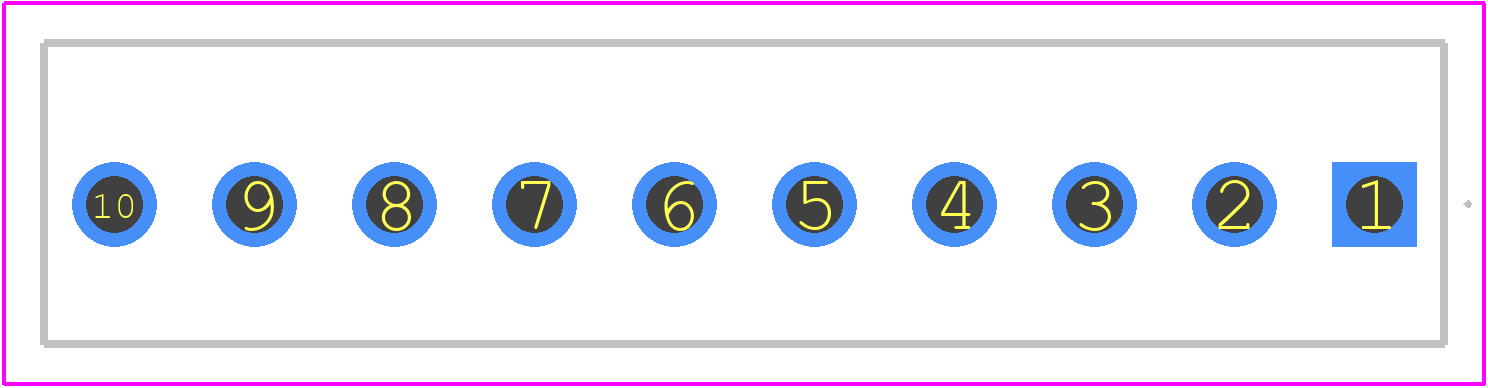

1604850000 - Weidmüller PCB footprint - Other - Other - 1604850000-1
click to zoom
3D Models
1604850000 - Weidmüller - 3D model - Other - 1604850000-1
click to zoom

1604850000 Details

  • Manufacturer Part Number:

    1604850000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYBUTYLENE TEREPHTHALATE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    10

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; IEC; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1604850000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1604850000 is -40°C to 85°C, as specified by Weidmüller.
  • Yes, the 1604850000 is RoHS and REACH compliant, meeting the European Union's directives for restricted substances and chemical safety.
  • The typical lead time for delivery of the 1604850000 varies depending on the region and availability, but it's usually around 2-4 weeks.
  • The 1604850000 is not designed for use in hazardous locations, such as explosive atmospheres. It's intended for general industrial applications only.
  • The recommended torque for the screw terminals on the 1604850000 is 0.5 Nm to 1.5 Nm, as specified by Weidmüller.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1604850000 Overview

Use the download button to access the 1604850000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 16048, or try a keyword search, such as Terminals and Terminal Blocks

Parts related to 1604850000
