1604910000 - Weidmüller

Description: PCB connector (board connection), 160 V, 17 A, Pitch in mm: 3.50, Number of poles: 16, THT solder connection, Box

Download 1604910000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1604910000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

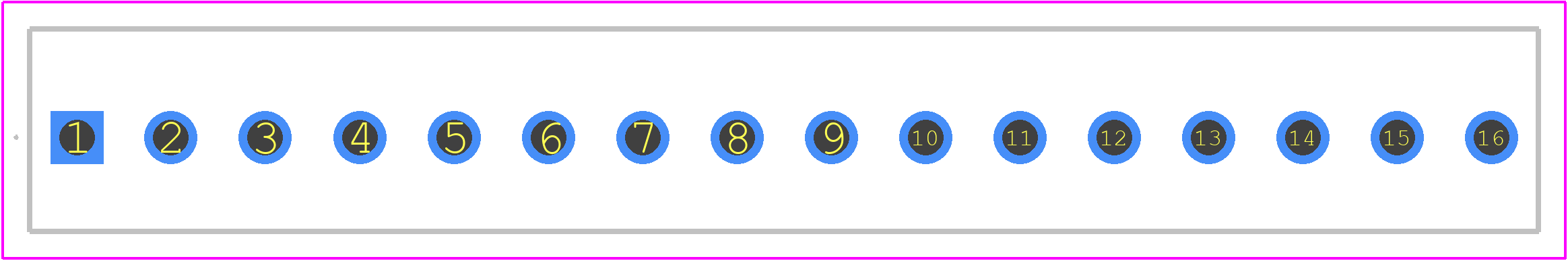

1604910000 - Weidmüller PCB footprint - Other - Other - 1604910000
click to zoom
3D Models
1604910000 - Weidmüller - 3D model - Other - 1604910000
click to zoom

1604910000 Details

  • Manufacturer Part Number:

    1604910000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    8

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    16

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; IEC; PCT; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1604910000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1604910000 is -40°C to 85°C, according to Weidmüller's documentation.
  • Yes, the 1604910000 is RoHS and REACH compliant, meeting the European Union's directives for restricted substances and chemical safety.
  • The typical lead time for delivery of the 1604910000 varies depending on the region and availability, but it's usually around 2-4 weeks. It's best to check with Weidmüller or an authorized distributor for the most up-to-date information.
  • The 1604910000 is not designed for use in hazardous locations, such as explosive atmospheres. It's intended for general-purpose industrial applications.
  • The recommended torque for the screw terminals on the 1604910000 is 0.5 Nm to 1.2 Nm, depending on the wire size and type. It's essential to follow Weidmüller's guidelines to ensure reliable connections.
