1607130000 - Weidmüller

Description: PCB connector (board connection), 160 V, 17 A, Pitch in mm: 3.50, Number of poles: 11, THT solder connection, Box

Download 1607130000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1607130000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

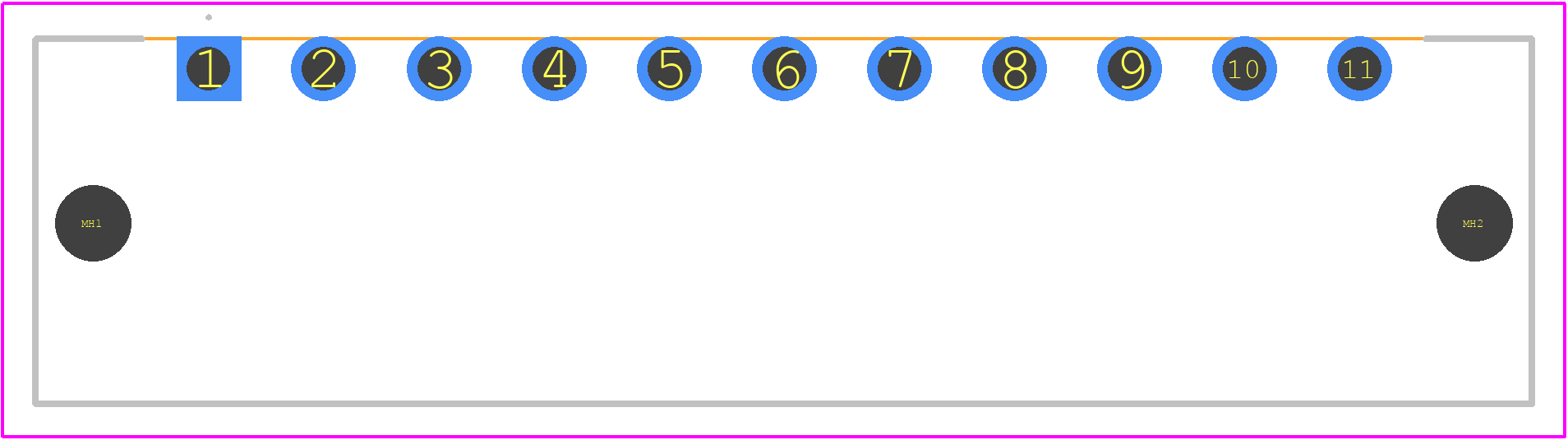

1607130000 - Weidmüller PCB footprint - Other - Other - 1607130000-3
click to zoom
3D Models
1607130000 - Weidmüller - 3D model - Other - 1607130000-3
click to zoom

1607130000 Details

  • Manufacturer Part Number:

    1607130000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    6.75

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    3.5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    11

  • UL Flammability Code:

    94V-0

1607130000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1607130000 is -40°C to 125°C, making it suitable for use in a wide range of industrial applications.
  • Yes, the 1607130000 is designed for outdoor use and has a IP67 rating, which means it is protected against dust and water ingress, making it suitable for harsh environmental conditions.
  • The 1607130000 has a mating cycle of 500 cycles, which means it can be connected and disconnected up to 500 times without compromising its performance or reliability.
  • Yes, the 1607130000 is designed to withstand high-vibration applications, making it suitable for use in industrial environments where vibration is a concern.
  • Yes, the 1607130000 is RoHS and REACH compliant, which means it meets the European Union's regulations for the restriction of hazardous substances in electrical and electronic equipment.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1607130000 Overview

Use the download button to access the 1607130000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 16071, or try a keyword search, such as Headers and Edge Type Connectors
