1607530 - Phoenix Contact

Description: VC-AML 5-PEA - Contact insert, Range of articles: VARIOCON, design: VC3, color: light gray, number of positions: 5, rated voltage: 690, rated current: 63 A, Connection method: PCB connection, Connectors may only be connected/disconnected when under no load.

Download 1607530 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

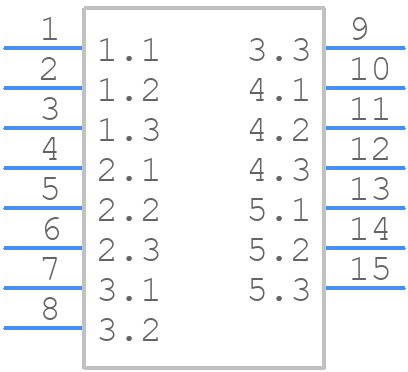

Symbol
1607530 - Phoenix Contact - PCB symbol
click to zoom

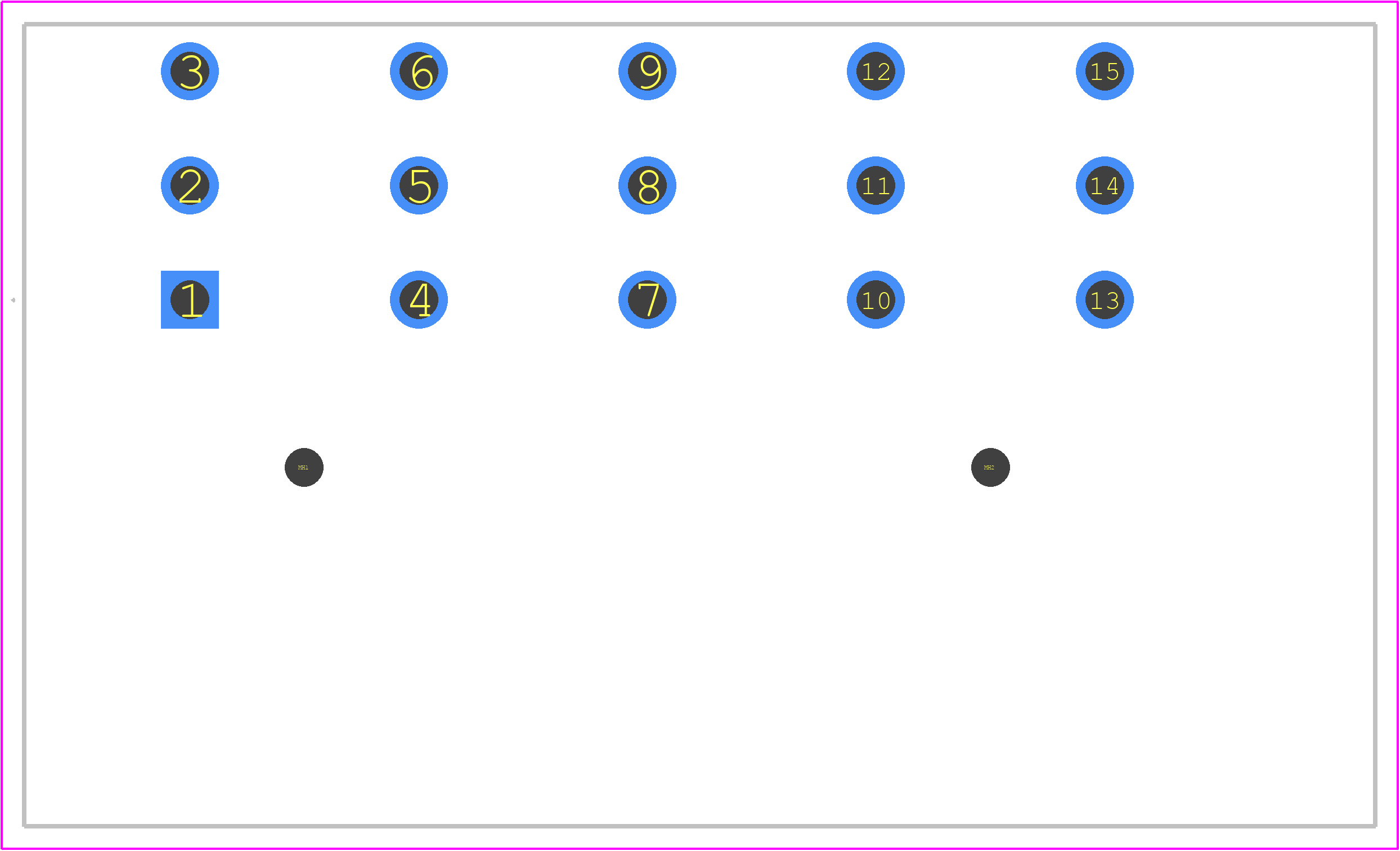

PCB Footprints
1607530 - Phoenix Contact PCB footprint - Other - Other - 1607530
click to zoom
3D Models
1607530 - Phoenix Contact - 3D model - Other - 1607530
click to zoom

1607530 Details

  • Manufacturer Part Number:

    1607530

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Poland

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    0

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1607530 Overview

Use the download button to access the 1607530 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 16075, or try a keyword search, such as Assembly Items

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
