- Part Number 1609078-1
- Manufacturer TE Connectivity
- Pin Count 5
- Part Category Connector
- Package Category Other

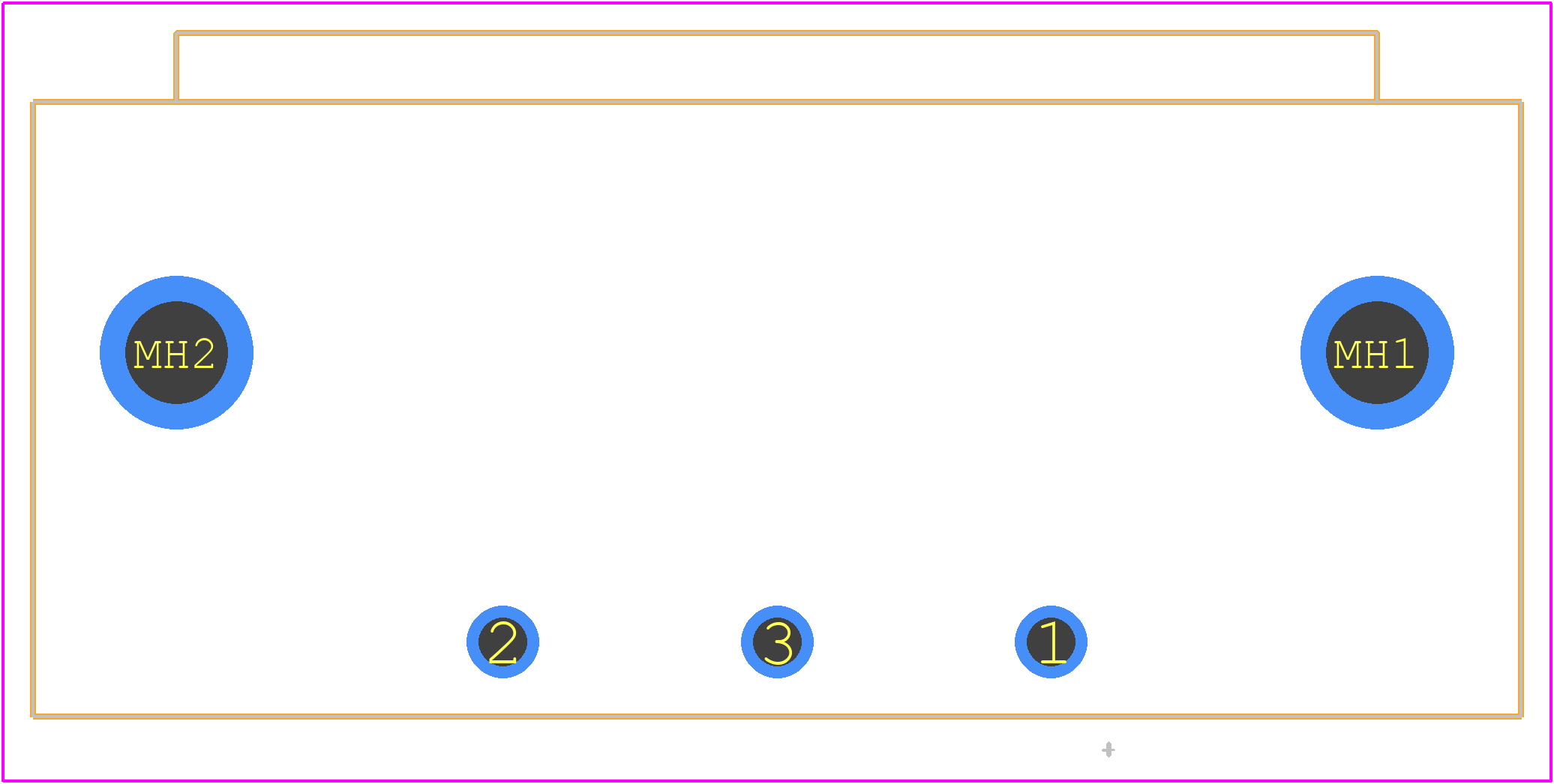

- Footprint Name Other - 1609078-1-2
- Released Date Jan 8, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
1609078-1 Details
-
Manufacturer Part Number:
1609078-1
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
32 Weeks, 2 Days
-
Manufacturer:
TE Connectivity
-
Additional Feature:
STANDARD: IEC 320/C14; CSA; UL; VDE
-
Body/Shell Style:
RECEPTACLE
-
Connector Type:
MAINS POWER CONNECTOR
1609078-1 Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
-
Yes, the 1609078-1 connector is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and secure the connector to the PCB or panel to prevent damage or disconnection.
-
The 1609078-1 connector is rated for operating temperatures between -40°C to 125°C (-40°F to 257°F) and can withstand humidity up to 95% RH. However, it's essential to consider the specific environmental conditions of your application and ensure the connector meets those requirements.
-
The 1609078-1 connector is designed for use with 20-24 AWG wire. It's recommended to use a wire with a temperature rating of at least 150°C (302°F) and a insulation material compatible with the connector's plastic material.
-
The 1609078-1 connector is not designed to be waterproof or sealed. If you need a connector for a sealed or waterproof application, consider using a different connector with IP67 or higher rating.
