160D10 - Hammond Manufacturing

Description: Power Transformers LOW VOLTAGE RECT

Download 160D10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

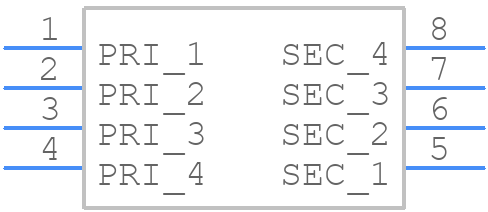

160D10 - Hammond Manufacturing - PCB symbol
click to zoom
PCB Footprints

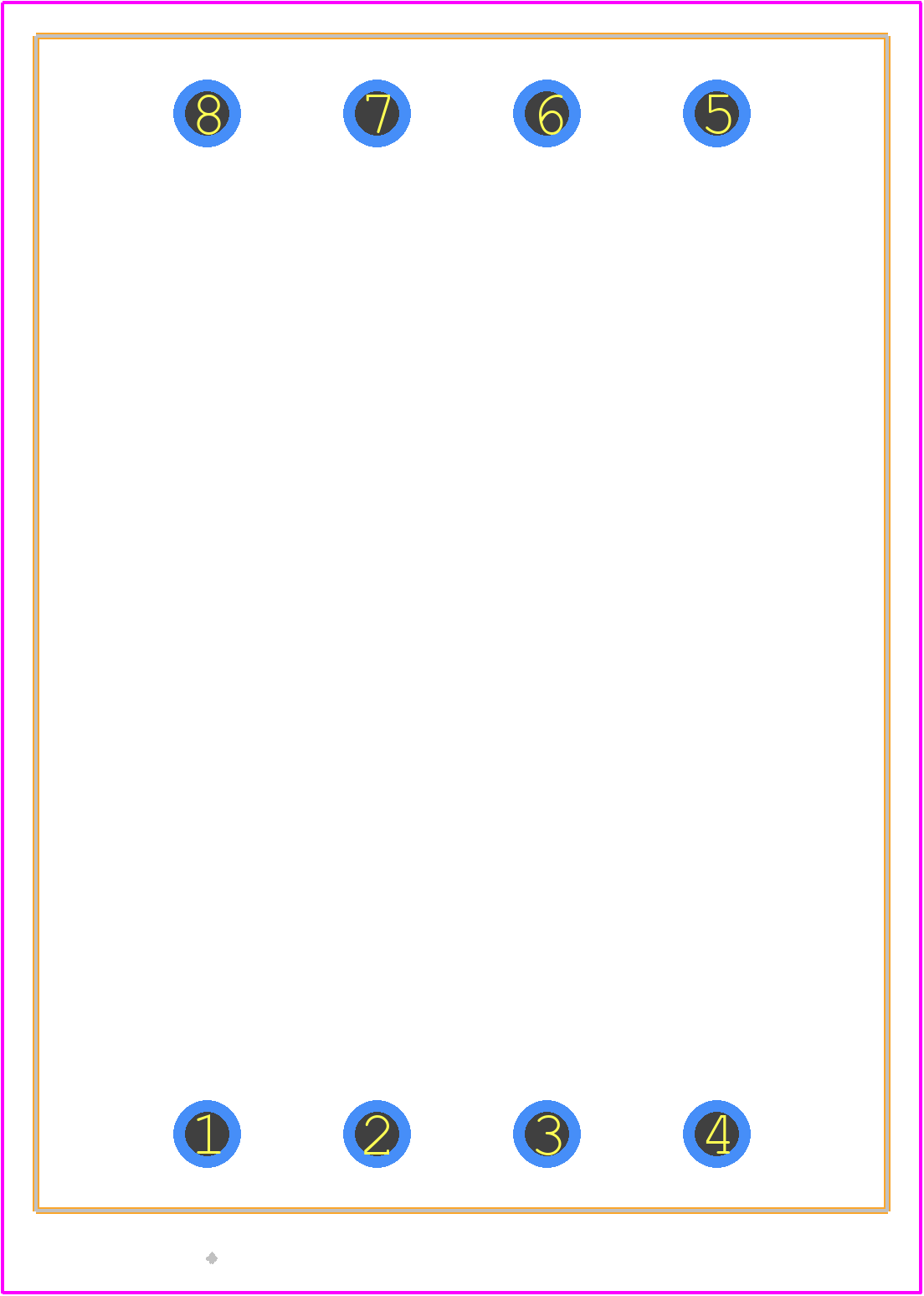

160D10 - Hammond Manufacturing PCB footprint - Other - Other - 160D10-3
click to zoom
3D Models
160D10 - Hammond Manufacturing - 3D model - Other - 160D10-3
click to zoom

160D10 Details

  • Manufacturer Part Number:

    160D10

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Hammond Manufacturing

  • YTEOL:

    6.02

  • Approvals:

    CSA; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    21.082 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    2000 V

  • Length:

    25.4 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.18 A

  • Output Voltage 1:

    5 V

  • Output Voltage 2:

    5 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    1 VA

  • Width:

    35.052 mm

160D10 Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the 160D10 is 10-12 in-lbs (1.1-1.4 Nm).
  • Yes, the 160D10 is designed to withstand high-vibration environments. However, it's recommended to secure the enclosure with additional fasteners or adhesives to ensure stability.
  • The 160D10 is designed for indoor use, but it can be used outdoors with proper protection from the elements. A NEMA 4 or 4X rating can be achieved with the addition of a gasket and proper sealing.
  • Yes, Hammond Manufacturing offers customization services for the 160D10. Contact their sales team to discuss your specific requirements.
  • The 160D10 has an IP rating of IP54, which means it provides protection against dust and water splashes.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

160D10 Overview

Use the download button to access the 160D10 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 160D1, or try a keyword search, such as Power/Mains Transformers
