1622950000 - Weidmüller

Description: PCB connector (board connection), 320 V, 23 A, Pitch in mm: 5.08, Number of poles: 3, THT solder connection, Box

Download 1622950000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1622950000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

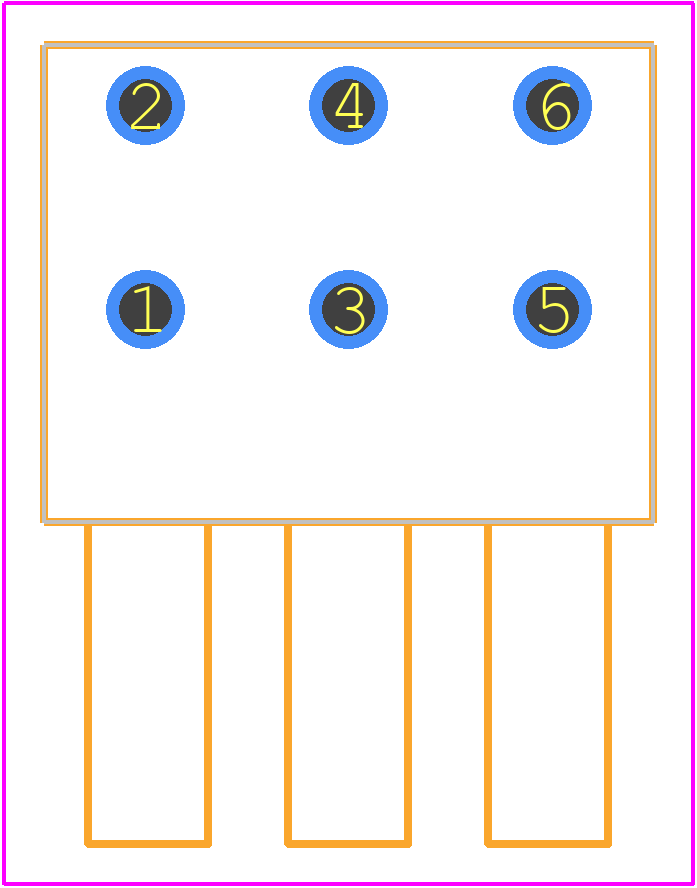

1622950000 - Weidmüller PCB footprint - Other - Other - 1622950000-2
click to zoom
3D Models
1622950000 - Weidmüller - 3D model - Other - 1622950000-2
click to zoom

1622950000 Details

  • Manufacturer Part Number:

    1622950000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: 94V-0, POLYBUTYLENE TEREPHTHALATE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    3

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; IEC; UL; VDE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1622950000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1622950000 is -40°C to 85°C, as specified by Weidmüller Interface GmbH & Co. KG.
  • Yes, the 1622950000 is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
  • The maximum current rating for the 1622950000 is 10A, as specified by Weidmüller Interface GmbH & Co. KG.
  • Yes, the 1622950000 is designed to withstand high-vibration environments, making it suitable for use in industrial and transportation applications.
  • The 1622950000 has an IP67 rating, meaning it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.
