162E10 - Hammond Manufacturing

Description: Power Transformers DUAL PRI HOR PC MTG

Download 162E10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

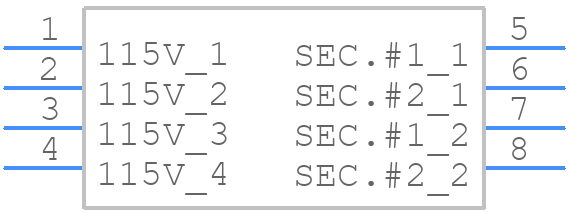

162E10 - Hammond Manufacturing - PCB symbol
click to zoom
PCB Footprints

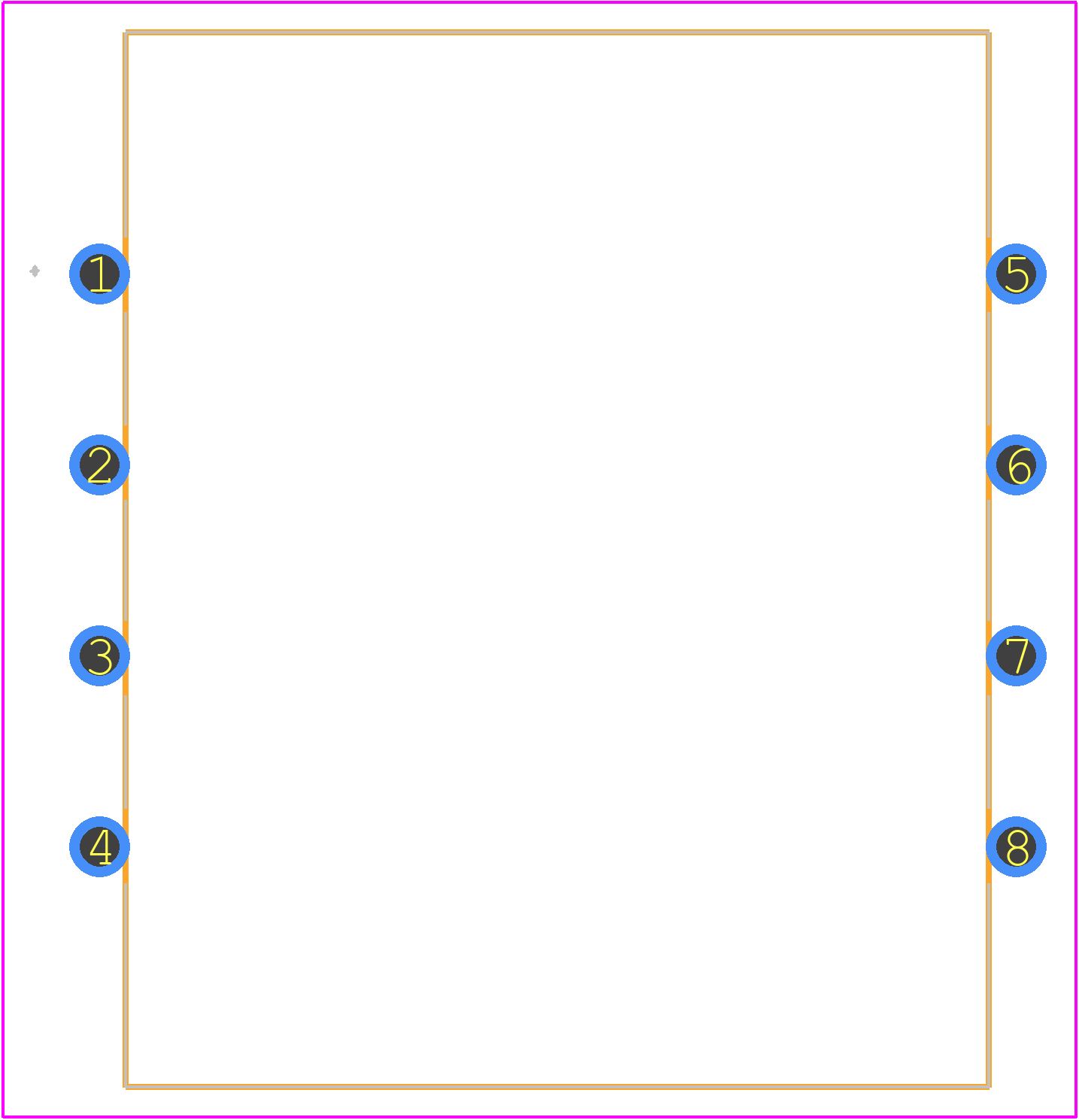

162E10 - Hammond Manufacturing PCB footprint - Other - Other - 162E10-5
click to zoom
3D Models
162E10 - Hammond Manufacturing - 3D model - Other - 162E10-5
click to zoom

162E10 Details

  • Manufacturer Part Number:

    162E10

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Hammond Manufacturing

  • YTEOL:

    6.02

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    30.226 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    2500 V

  • Length:

    35.052 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.5 A

  • Output Voltage 1:

    5 V

  • Output Voltage 2:

    5 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    2.4 VA

  • Width:

    28.702 mm

162E10 Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the 162E10 is 10-12 in-lbs (1.1-1.4 Nm).
  • Yes, the 162E10 is designed to withstand high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for mounting and securing the enclosure to ensure optimal performance.
  • The 162E10 has a rating of IP65, which means it provides protection against dust and water jets. However, it's not recommended for direct exposure to the elements or immersion in water. For outdoor use, consider adding additional protection such as a weatherproof coating or gasket.
  • Yes, Hammond Manufacturing offers customization services for the 162E10. You can contact their customer service or a authorized distributor to discuss your specific requirements and obtain a quote.
  • The operating temperature range for the 162E10 is -20°C to 80°C (-4°F to 176°F). However, it's recommended to check the specific temperature rating for the components installed inside the enclosure.
