162F10 - Hammond Manufacturing

Description: Power Transformers Transformer, low volt PCB mount, low profile, 115/230V, 6VA, 10V C.T. @ .6A

Download 162F10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

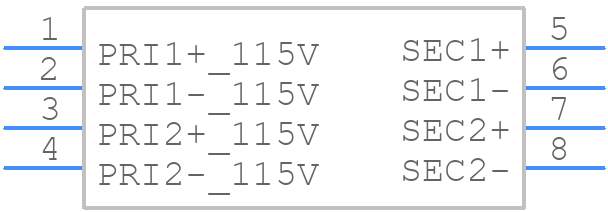

162F10 - Hammond Manufacturing - PCB symbol
click to zoom
PCB Footprints

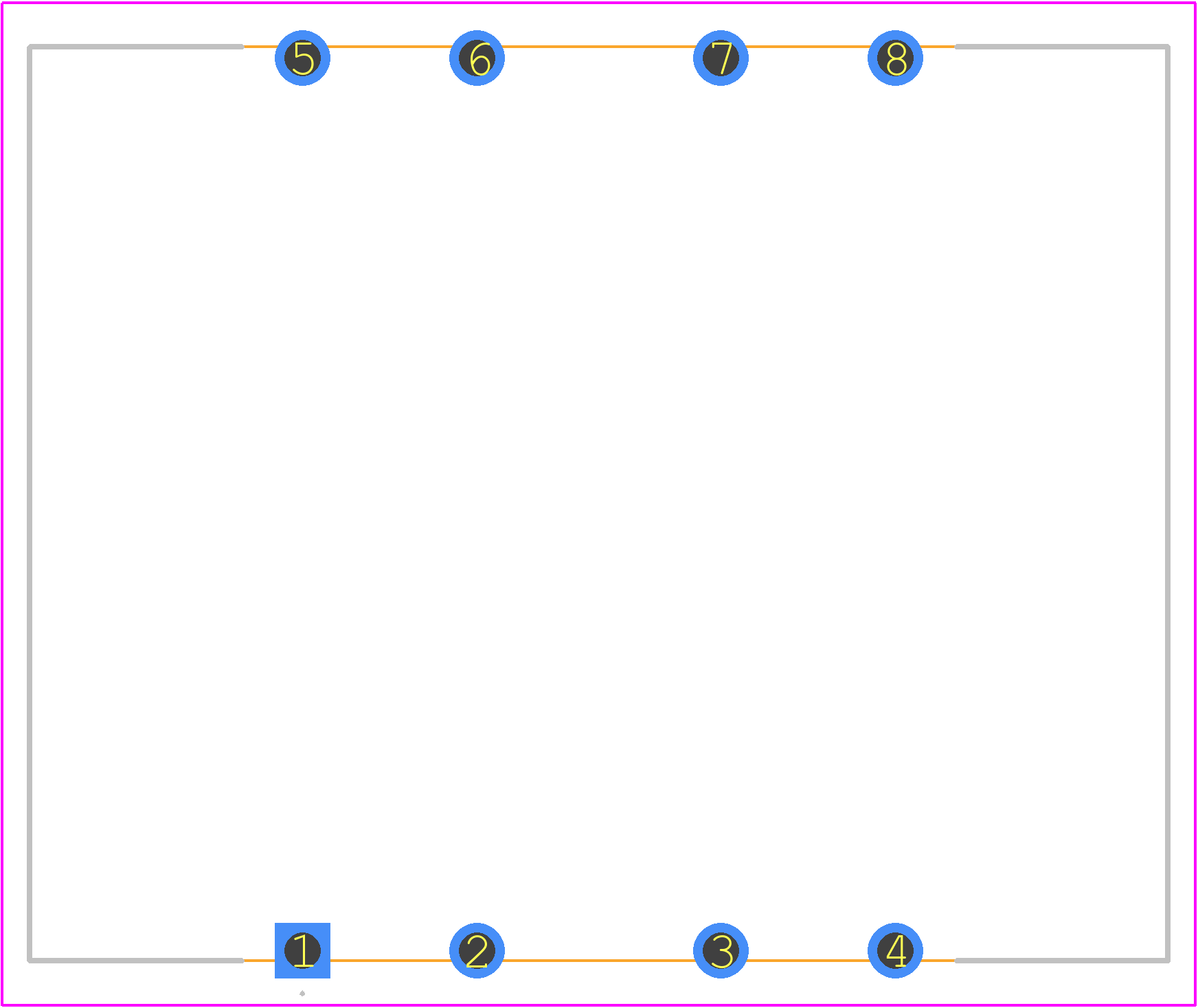

162F10 - Hammond Manufacturing PCB footprint - Other - Other - 162F10-1
click to zoom
3D Models
162F10 - Hammond Manufacturing - 3D model - Other - 162F10-1
click to zoom

162F10 Details

  • Manufacturer Part Number:

    162F10

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Hammond Manufacturing

  • YTEOL:

    6.02

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    32.766 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    2500 V

  • Length:

    41.275 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Output Current 1:

    1.2 A

  • Output Voltage 1:

    5 V

  • Output Voltage 2:

    5 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    6 VA

  • Width:

    33.3502 mm

162F10 Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the 162F10 is 10-12 in-lbs (1.1-1.4 Nm).
  • Yes, the 162F10 is designed to withstand high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for mounting and installation to ensure optimal performance.
  • The 162F10 has a maximum operating temperature of 130°C (266°F). While it can handle high temperatures, it's essential to ensure that the application does not exceed this limit to prevent damage or malfunction.
  • The typical lead time for delivery of the 162F10 varies depending on the supplier and the quantity ordered. However, most suppliers offer a lead time of 1-2 weeks for standard orders.
  • Yes, Hammond Manufacturing offers customization options for the 162F10. Engineers can contact the manufacturer or an authorized distributor to discuss specific requirements and explore customization possibilities.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

162F10 Overview

Use the download button to access the 162F10 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 162F1, or try a keyword search, such as Power/Mains Transformers
