162H BA BW - Displaytech

Description: Character LCD Display Module Reflective 5 x 8 Dots STN - Super-Twisted Nematic Without Backlight 84.00mm x 44.00mm x 9.70mm

Download 162H BA BW Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 162H BA BW model

Email notifications will be applied after download.

Send part feedback

Symbol

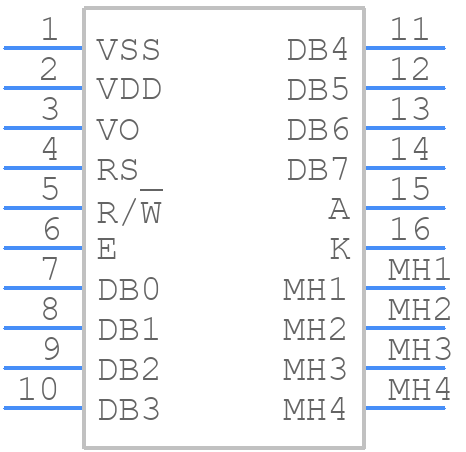

162H BA BW - Displaytech - PCB symbol

PCB Footprints

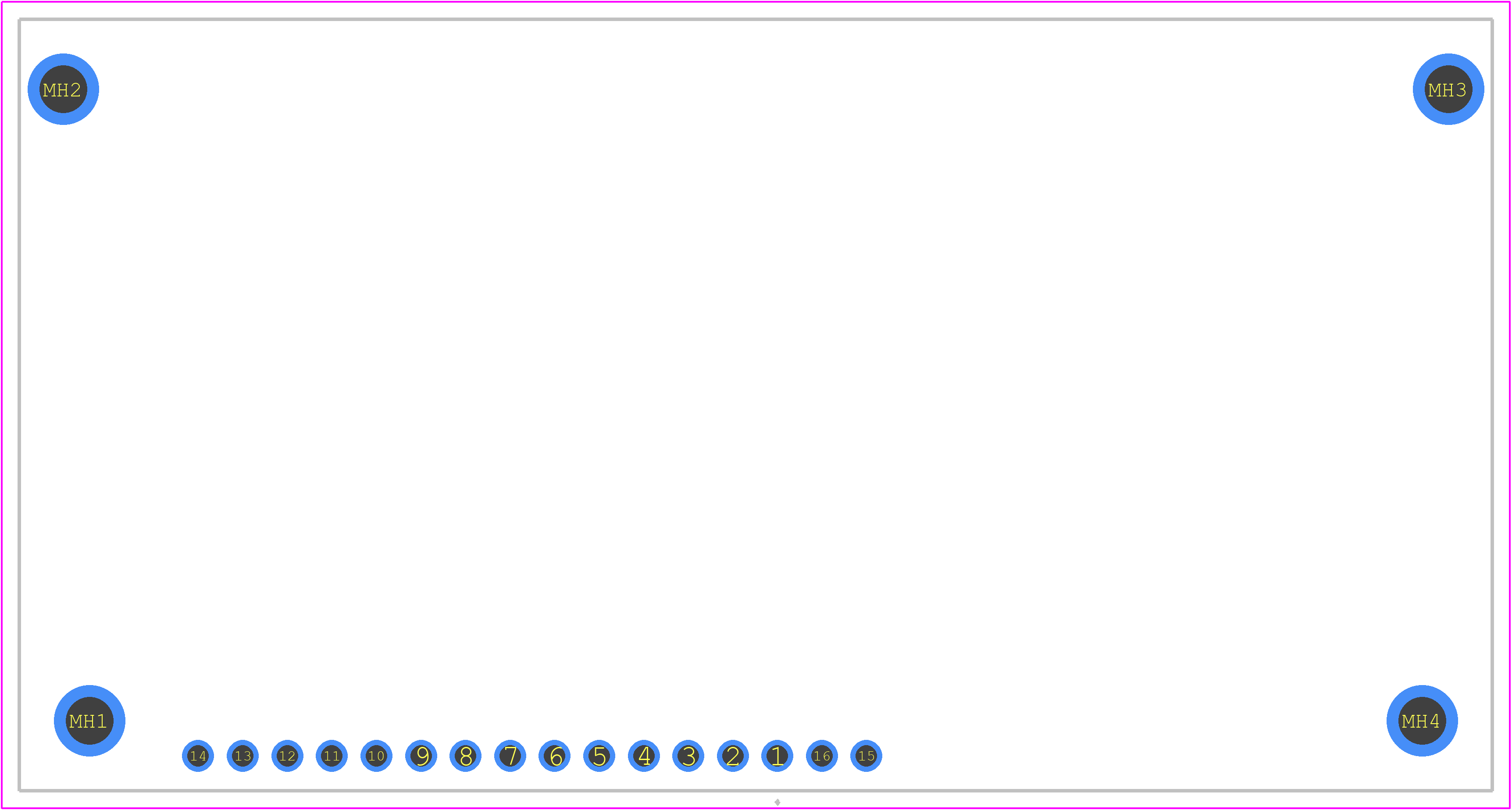

162H BA BW - Displaytech PCB footprint - Other - Other - 162H BA BW-1

3D Models

162H BA BW - Displaytech - 3D model - Other - 162H BA BW-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for 162H BA BW
Part Number 162H BA BW
Manufacturer Displaytech
Pin Count 20
Part Category Display
Package Category Other
Footprint Name Other - 162H BA BW-1
Released Date Feb 23, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

162H BA BW Details

Manufacturer Part Number:
162H BA BW
Manufacturer:
Displaytech Ltd

Trust Checks

Expert Contribution

System Verified

Community Approved

162H BA BW Overview

Use the download button to access the 162H BA BW schematic symbol, PCB footprint, and 3D model.
