162J120 - Hammond Manufacturing

Description: Power Transformers Transformer, low voltage PCB mount, low profile, 115/230V, 36VA, 120V C.T. @ .3A

Download 162J120 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
162J120 - Hammond Manufacturing - PCB symbol
click to zoom
PCB Footprints

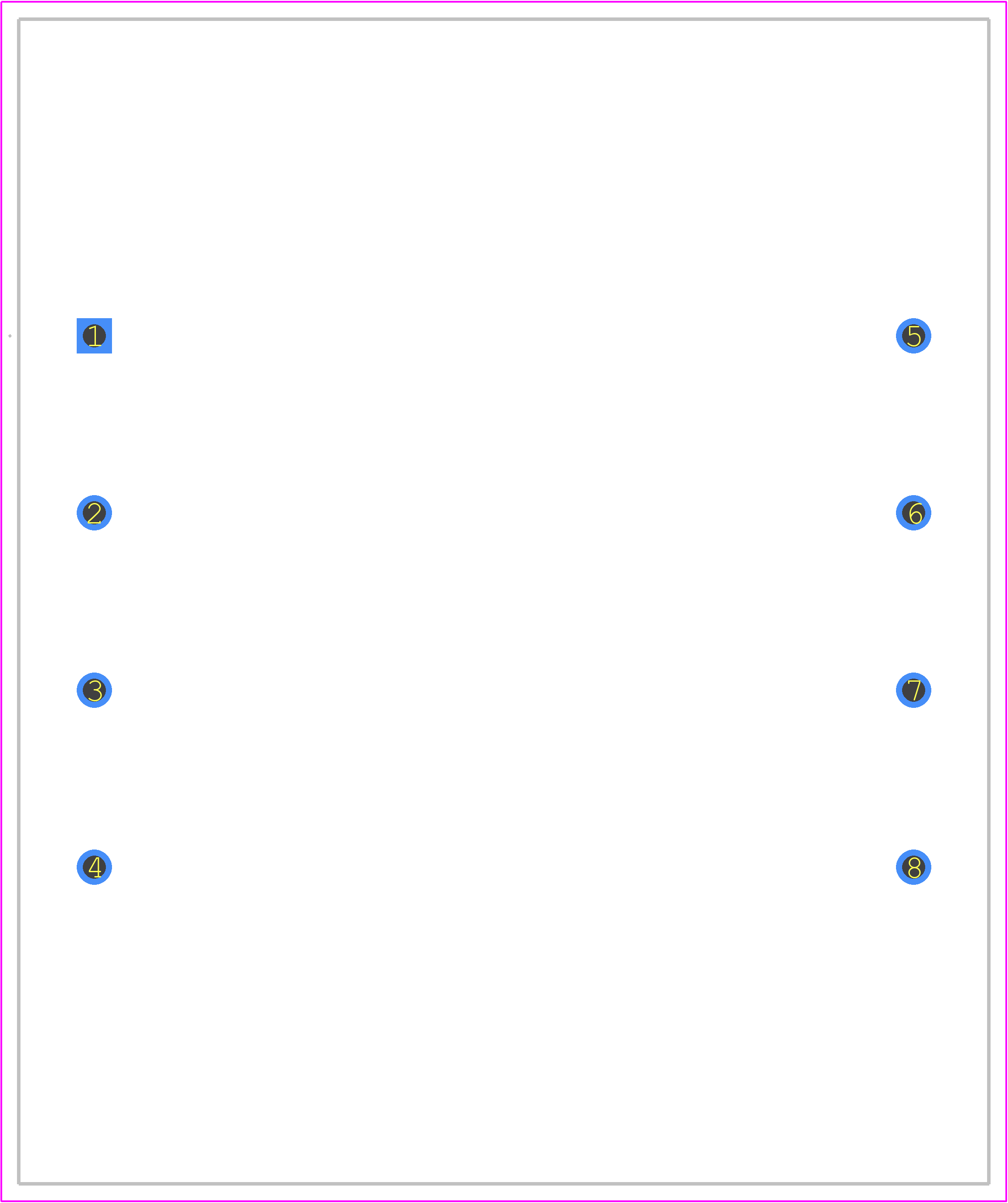

162J120 - Hammond Manufacturing PCB footprint - Other - Other - 162J120-1
click to zoom
3D Models
162J120 - Hammond Manufacturing - 3D model - Other - 162J120-1
click to zoom

162J120 Details

  • Manufacturer Part Number:

    162J120

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Canada

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Hammond Manufacturing

  • YTEOL:

    6.02

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    39.624 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    2500 V

  • Length:

    66.675 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.6 A

  • Output Voltage 1:

    60 V

  • Output Voltage 2:

    60 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    36 VA

  • Width:

    55.5752 mm

162J120 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 162J120 is -40°C to +85°C.
  • Yes, the 162J120 is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
  • The lead time for the 162J120 can vary depending on the supplier and the quantity ordered. Typically, it ranges from 2-6 weeks.
  • Yes, the 162J120 is designed to withstand high-vibration environments, making it suitable for use in applications such as industrial control systems, transportation, and aerospace.
  • The 162J120 is not intended for outdoor use, as it is not sealed against moisture and humidity. However, it can be used in outdoor enclosures with proper protection and sealing.
