162J24 - Hammond Manufacturing

Description: Power Transformers Transformer, low volt PCB mount, low profile, 115/230V, 36VA, 24V C.T. @ 1.5A

Download 162J24 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

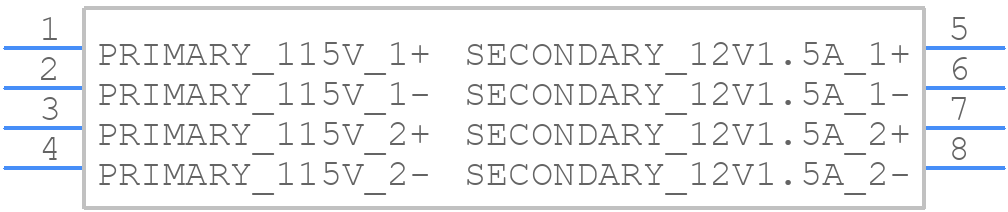

Symbol
162J24 - Hammond Manufacturing - PCB symbol
click to zoom

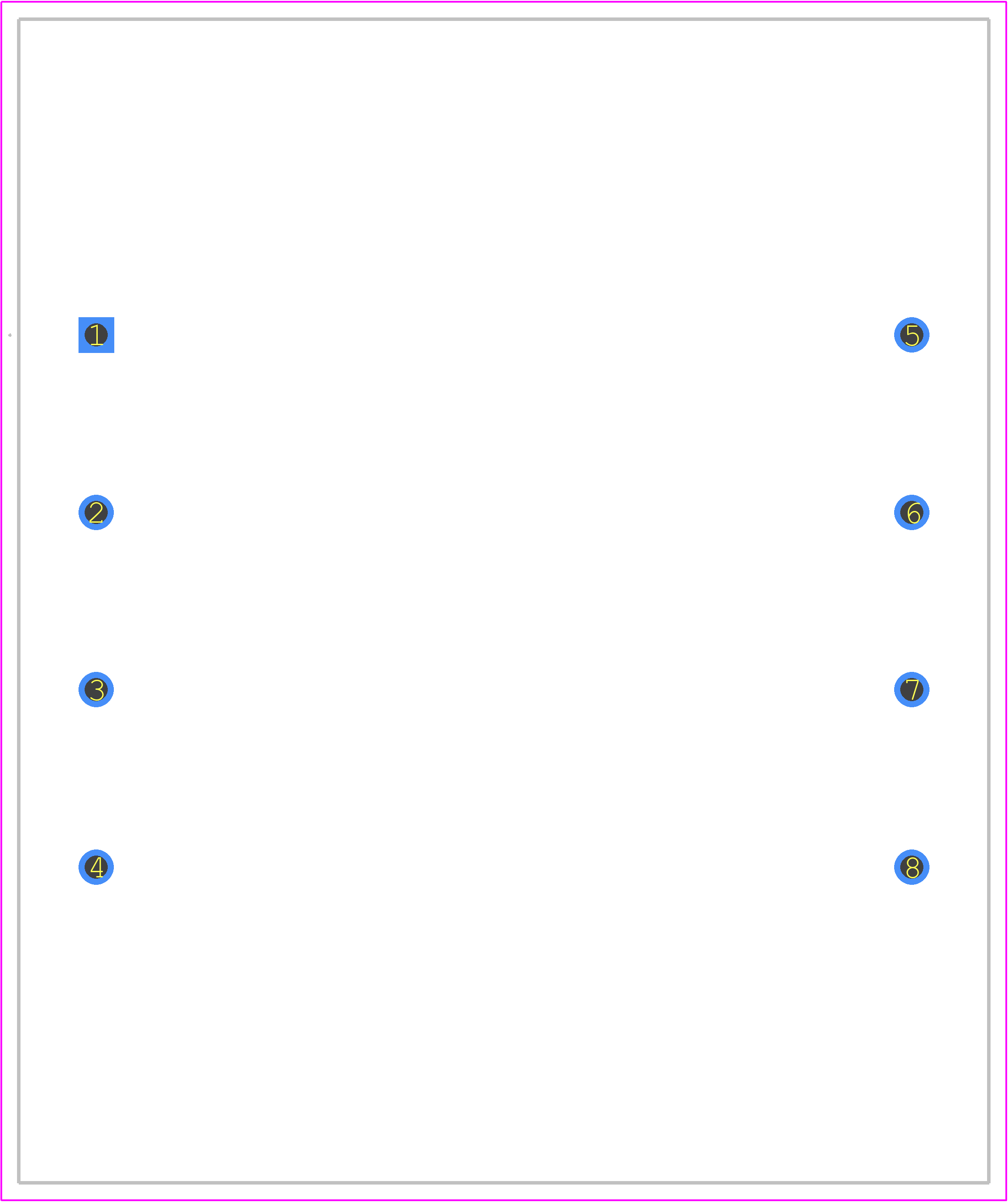

PCB Footprints
162J24 - Hammond Manufacturing PCB footprint - Other - Other - 66.675 x 55.575 x 39.624mm
click to zoom
3D Models
162J24 - Hammond Manufacturing - 3D model - Other - 66.675 x 55.575 x 39.624mm
click to zoom

162J24 Details

  • Manufacturer Part Number:

    162J24

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Hammond Manufacturing

  • YTEOL:

    6.02

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    39.624 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    2500 V

  • Length:

    66.675 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Output Current 1:

    3 A

  • Output Voltage 1:

    12 V

  • Output Voltage 2:

    12 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    36 VA

  • Width:

    55.5752 mm

162J24 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 162J24 is -40°C to +85°C.
  • Yes, the 162J24 is RoHS (Restriction of Hazardous Substances) compliant, meeting the EU's directive on hazardous substances in electrical and electronic equipment.
  • The maximum power rating of the 162J24 is 24W.
  • Yes, the 162J24 is designed to withstand high-vibration environments, making it suitable for use in applications such as industrial control systems, transportation, and more.
  • Yes, the 162J24 meets the requirements for use in medical devices, including those that require low leakage current and high reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

162J24 Overview

Use the download button to access the 162J24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 162J2, or try a keyword search, such as Power/Mains Transformers
