1630790000 - Weidmüller

Description: PCB connector (board connection), 320 V, 23 A, Pitch in mm: 5.08, Number of poles: 10, THT solder connection, Box

Download 1630790000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

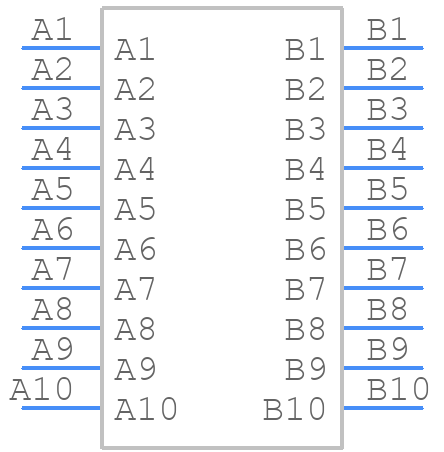

1630790000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

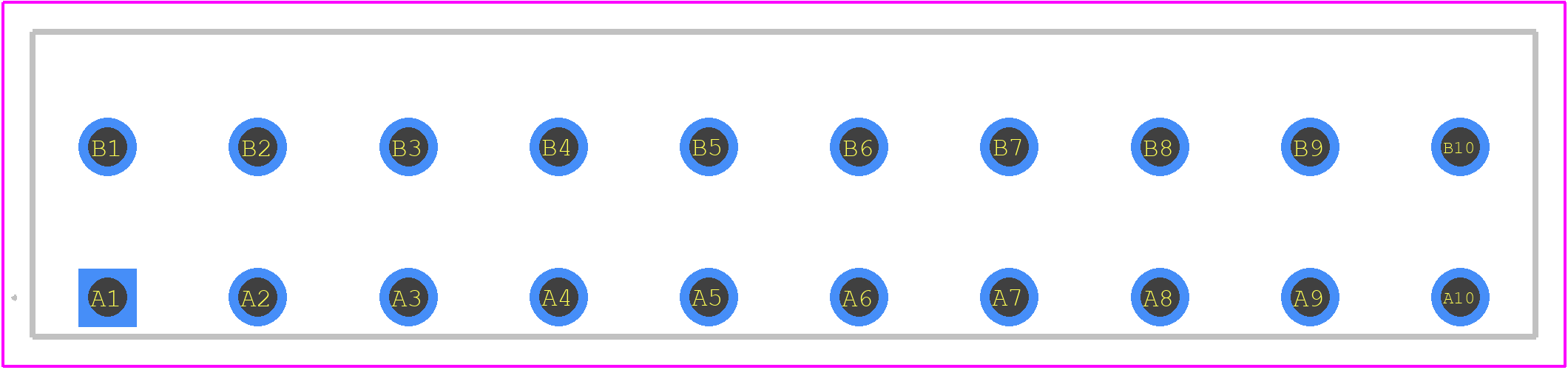

1630790000 - Weidmüller PCB footprint - Other - Other - 1630790000-2
click to zoom
3D Models
1630790000 - Weidmüller - 3D model - Other - 1630790000-2
click to zoom

1630790000 Details

  • Manufacturer Part Number:

    1630790000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL94V-0, GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    10

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; EAC; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK
