1630810000 - Weidmüller

Description: PCB connector (board connection), 320 V, 23 A, Pitch in mm: 5.08, Number of poles: 12, THT solder connection, Box

Download 1630810000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1630810000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

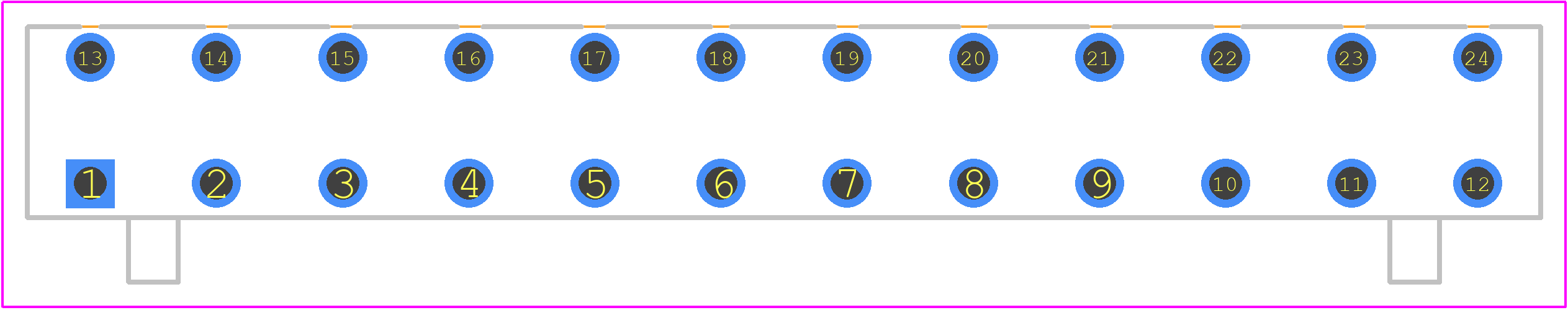

1630810000 - Weidmüller PCB footprint - Other - Other - 1630810000
click to zoom
3D Models
1630810000 - Weidmüller - 3D model - Other - 1630810000
click to zoom

1630810000 Details

  • Manufacturer Part Number:

    1630810000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7.98

  • Additional Feature:

    STANDARD: UL94V-0, GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    12

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; EAC; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1630810000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1630810000 is -40°C to 85°C, making it suitable for use in a wide range of industrial applications.
  • Yes, the 1630810000 is designed for DIN rail mounting, making it easy to install and integrate into existing systems.
  • The maximum current rating of the 1630810000 is 16 A, making it suitable for use in applications that require high current handling.
  • Yes, the 1630810000 has built-in surge protection, which helps to protect the device and connected equipment from voltage spikes and surges.
  • Yes, the 1630810000 is RoHS and REACH compliant, making it suitable for use in applications that require compliance with these regulations.
