1633430000 - Weidmüller

Description: PCB connector (board connection), 160 V, 10.5 A, Pitch in mm: 3.50, Number of poles: 20, THT solder connection, Box

Download 1633430000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1633430000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

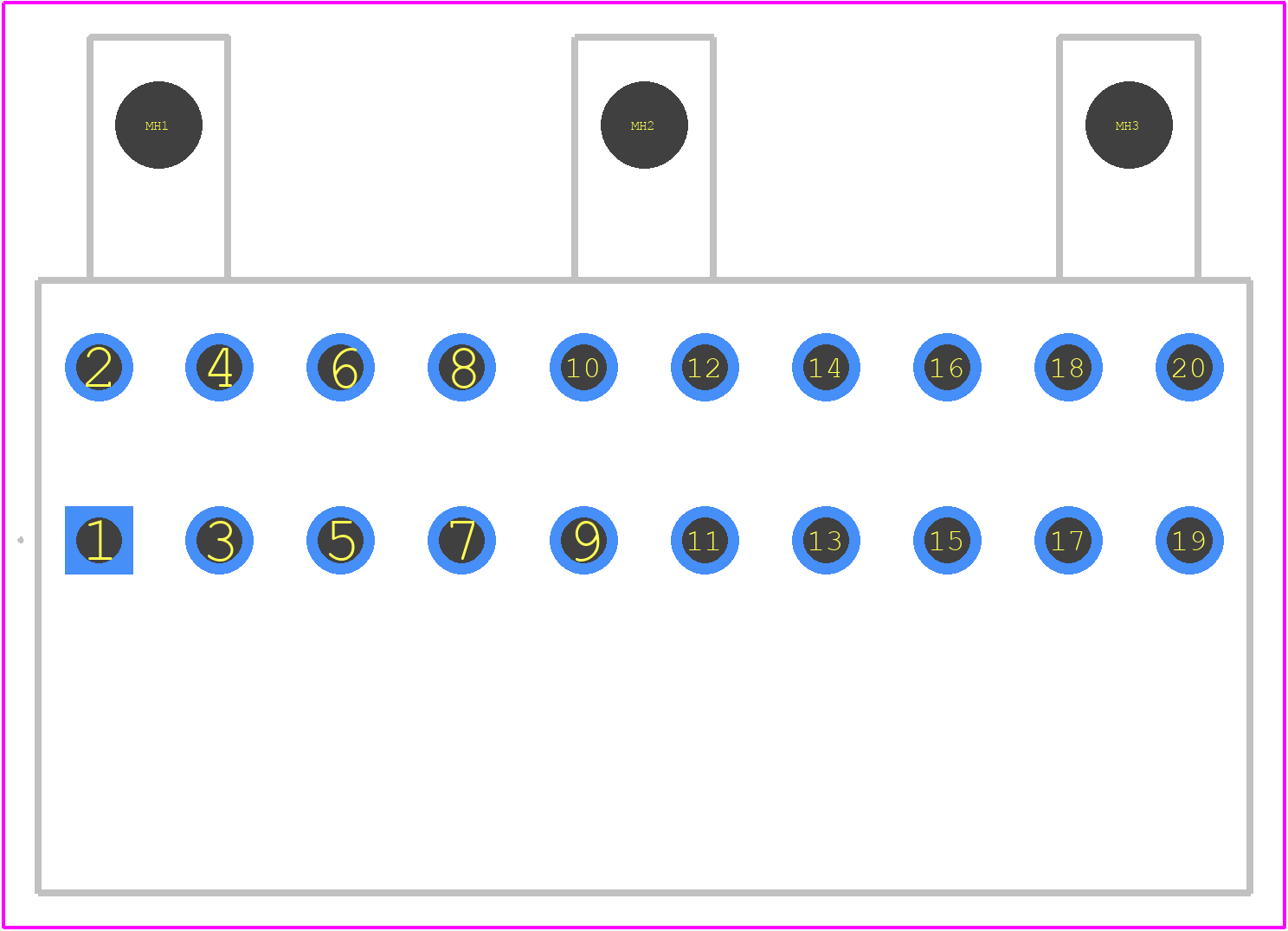

1633430000 - Weidmüller PCB footprint - Other - Other - 1633430000
click to zoom
3D Models
1633430000 - Weidmüller - 3D model - Other - 1633430000
click to zoom

1633430000 Details

  • Manufacturer Part Number:

    1633430000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    20

  • Rated Current:

    8 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; DIN; IEC; PCT; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1633430000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1633430000 is -40°C to 85°C, as specified by Weidmüller.
  • Yes, the 1633430000 product is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, ensuring it meets EU environmental regulations.
  • The typical lead time for delivery of the 1633430000 product varies depending on the region and availability. However, Weidmüller typically quotes a lead time of 2-4 weeks for standard products.
  • The 1633430000 product is not designed for use in hazardous locations. If you need a product for hazardous locations, you should consider Weidmüller's ATEX or IECEx certified products.
  • The recommended torque for the screw terminals on the 1633430000 product is 0.5 Nm to 1.2 Nm, as specified in the product manual.
