1633810000 - Weidmüller

Description: PCB connector (board connection), 160 V, 10.5 A, Pitch in mm: 3.50, Number of poles: 4, THT solder connection, Box

Download 1633810000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1633810000 - Weidmüller - PCB symbol
click to zoom

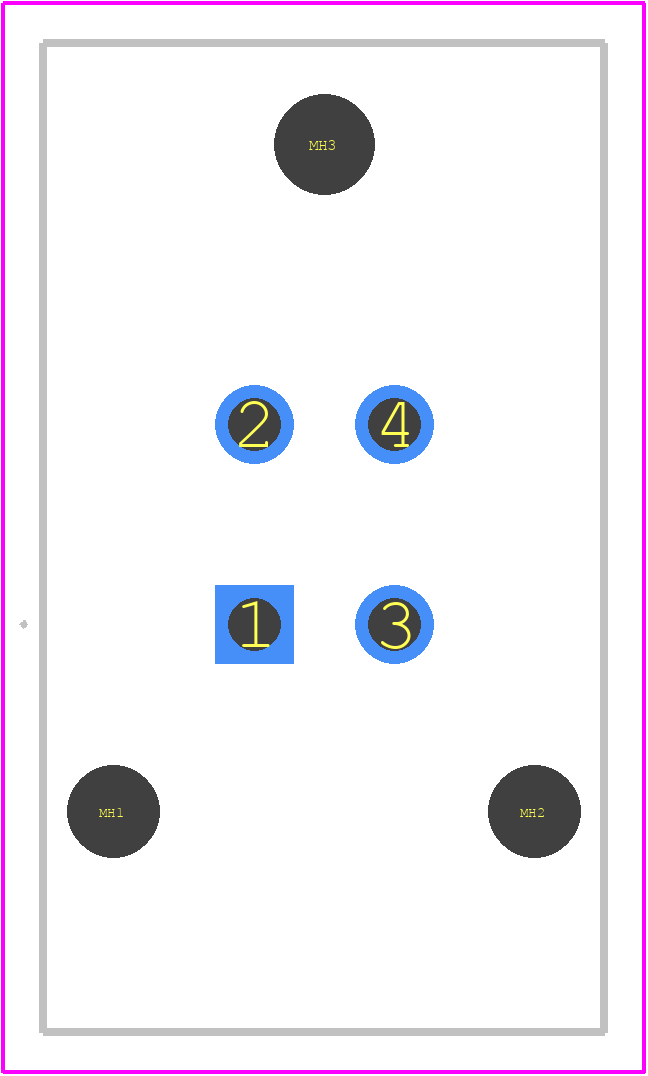

PCB Footprints
1633810000 - Weidmüller PCB footprint - Other - Other - 1633810000
click to zoom
3D Models
1633810000 - Weidmüller - 3D model - Other - 1633810000
click to zoom

1633810000 Details

  • Manufacturer Part Number:

    1633810000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    13 Weeks, 3 Days

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7.67

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    4

  • Rated Current:

    8 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; DIN; IEC; PCT; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1633810000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1633810000 is -40°C to 85°C, making it suitable for use in a wide range of industrial applications.
  • Yes, the 1633810000 is designed for DIN rail mounting, making it easy to install and integrate into existing systems.
  • The maximum current rating of the 1633810000 is 10A per contact, making it suitable for use in applications that require high current handling.
  • Yes, the 1633810000 is RoHS and REACH compliant, making it suitable for use in applications that require compliance with these regulations.
  • The 1633810000 has an IP20 rating, providing protection against solid objects and fingers, but not against water or moisture.
