1633830000 - Weidmüller

Description: PCB connector (board connection), 160 V, 10.5 A, Pitch in mm: 3.50, Number of poles: 8, THT solder connection, Box

Download 1633830000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1633830000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

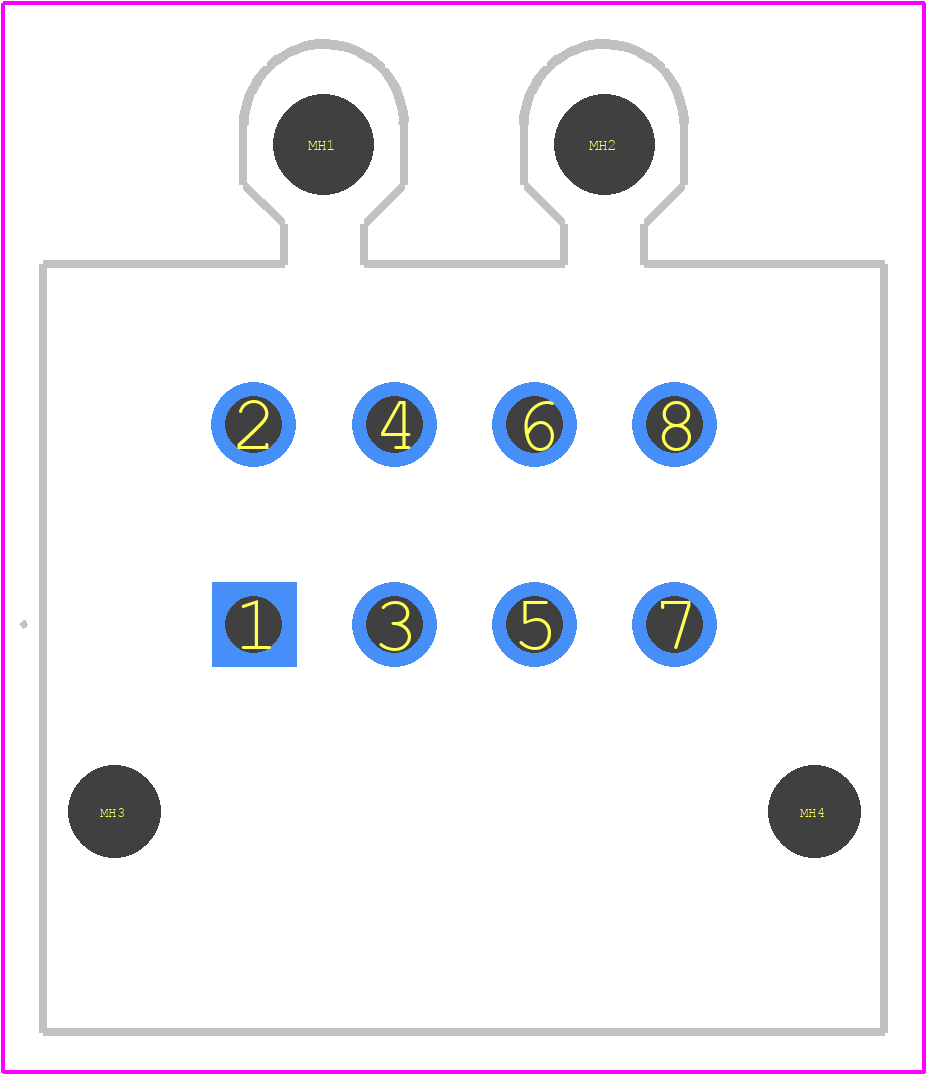

1633830000 - Weidmüller PCB footprint - Other - Other - 1633830000-2
click to zoom
3D Models
1633830000 - Weidmüller - 3D model - Other - 1633830000-2
click to zoom

1633830000 Details

  • Manufacturer Part Number:

    1633830000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    10 Weeks, 5 Days

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7.57

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    8

  • Rated Current:

    8 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; DIN; IEC; PCT; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1633830000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1633830000 connector is -40°C to 125°C, making it suitable for use in a wide range of industrial applications.
  • Yes, the 1633830000 connector is designed to withstand vibration and shock according to IEC 61373 Cat. 2 and EN 61373, making it suitable for use in harsh industrial environments.
  • The 1633830000 connector has an IP67 rating, which means it is protected against dust ingress and can withstand immersion in water up to 1 meter for 30 minutes.
  • The 1633830000 connector is not intended for use in explosive atmospheres and does not have any explosion-proof certifications. It is recommended to use connectors specifically designed for use in hazardous locations.
  • The recommended torque for the screw terminals of the 1633830000 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and wire size.
