1641270000 - Weidmüller

Description: PCB connector (board connection), 160 V, 10.5 A, Pitch in mm: 3.50, Number of poles: 16, THT solder connection, Box

Download 1641270000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1641270000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

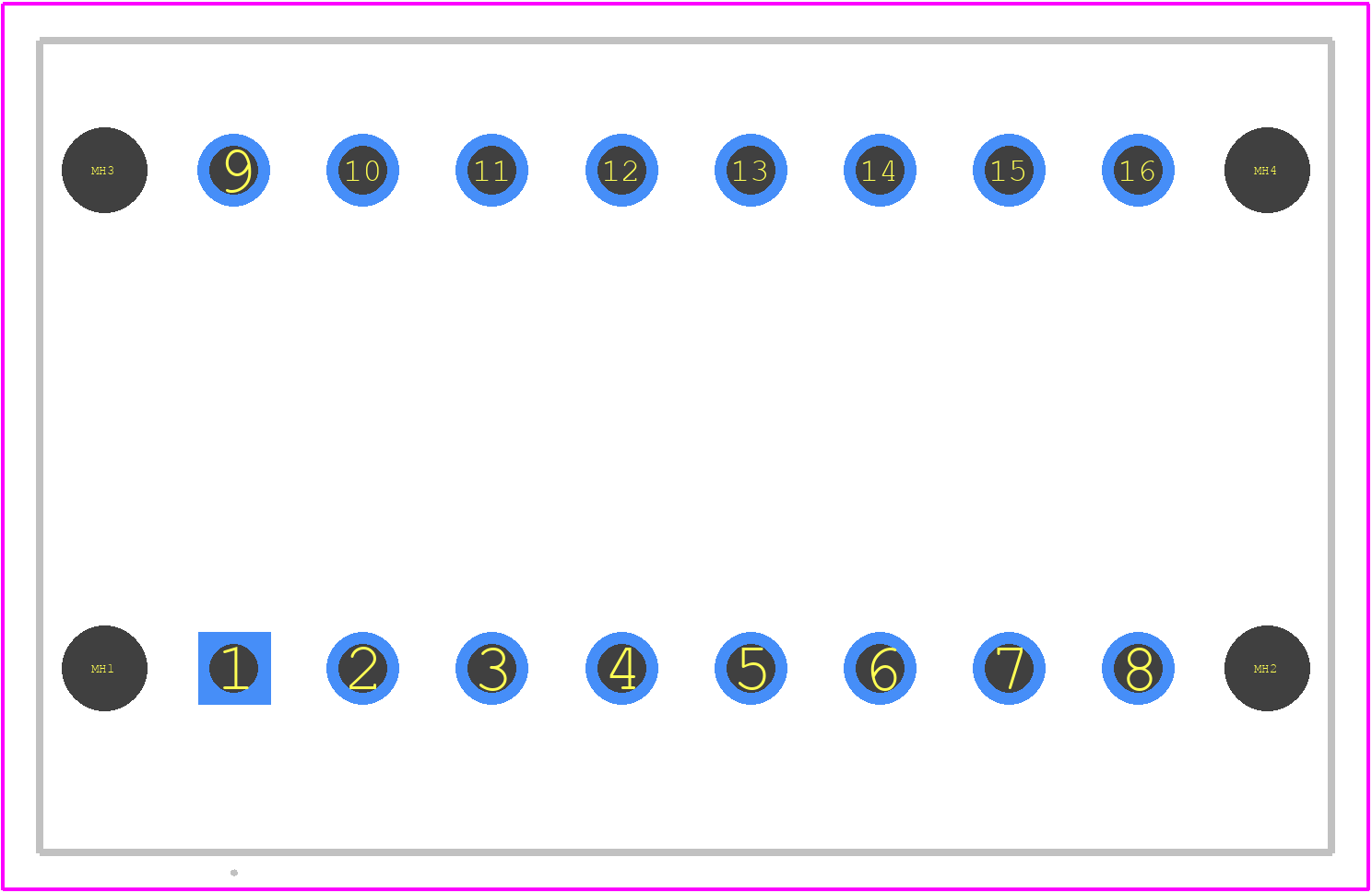

1641270000 - Weidmüller PCB footprint - Other - Other - 1641270000
click to zoom
3D Models
1641270000 - Weidmüller - 3D model - Other - 1641270000
click to zoom

1641270000 Details

  • Manufacturer Part Number:

    1641270000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0, POLYBUTYLENE TEREPHTHALATE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    16

  • Rated Current:

    8 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; DIN; IEC; PCT; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1641270000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1641270000 is -40°C to 85°C, making it suitable for use in a wide range of industrial applications.
