1658391-1 - TE Connectivity

Description: TE Connectivity SFP Series 16 Way 2 x 1 Port Female Right Angle SFP Cage Assembly 1.6mm Pitch Press-In Termination

Download 1658391-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1658391-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

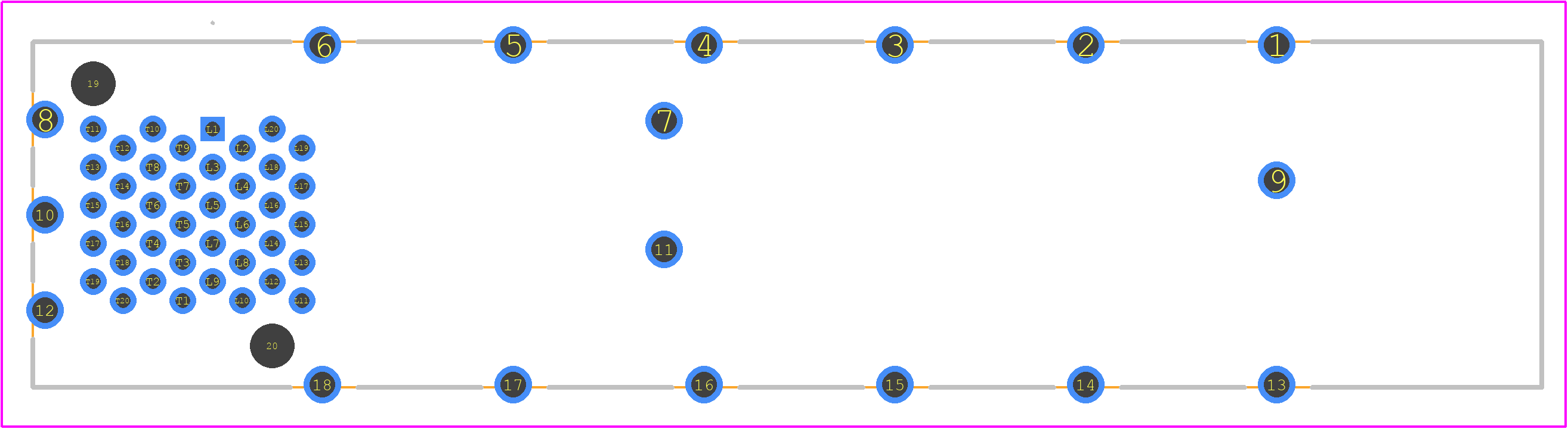

1658391-1 - TE Connectivity PCB footprint - Other - Other - 1658391-1-2
click to zoom
3D Models
1658391-1 - TE Connectivity - 3D model - Other - 1658391-1-2
click to zoom

1658391-1 Details

  • Manufacturer Part Number:

    1658391-1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Connector Type:

    RECTANGULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Option:

    GENERAL PURPOSE

1658391-1 Frequently Asked Questions (FAQs)

  • The recommended torque specification for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1658391-1 connector is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The operating temperature range for the 1658391-1 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
  • The 1658391-1 connector has a sealed construction, making it suitable for outdoor or harsh environmental applications. However, it's essential to ensure the connector is properly sealed and protected from moisture and contaminants.
  • The maximum current rating for the 1658391-1 connector is 3A per contact. It's essential to ensure the connector is used within this current rating to prevent overheating and damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1658391-1 Overview

Use the download button to access the 1658391-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 16583, or try a keyword search, such as Other Rectangular Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
