1658391-2 - TE Connectivity

Description: Configuration Features: Number of Ports 2 | Port Matrix Configuration 2 x 1 | Number of Positions 40 | Contact Features: Contact Current Rating (Max) .5 AMP | Electrical Characteristics: Data Rate (Max) 4 GBS | Housing Features: Centerline (Pitch) .8 MM | Centerline (Pitch) .03 INCH | Operation/Application: Circuit Application Signal | Pluggable I/O Applications SFP | Other: EMI Containment Feature Type Internal/External EMI Springs | Included Lightpipe No | Product Type Features: Pluggable I/O Product Type

Download 1658391-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1658391-2 - TE Connectivity - PCB symbol
click to zoom

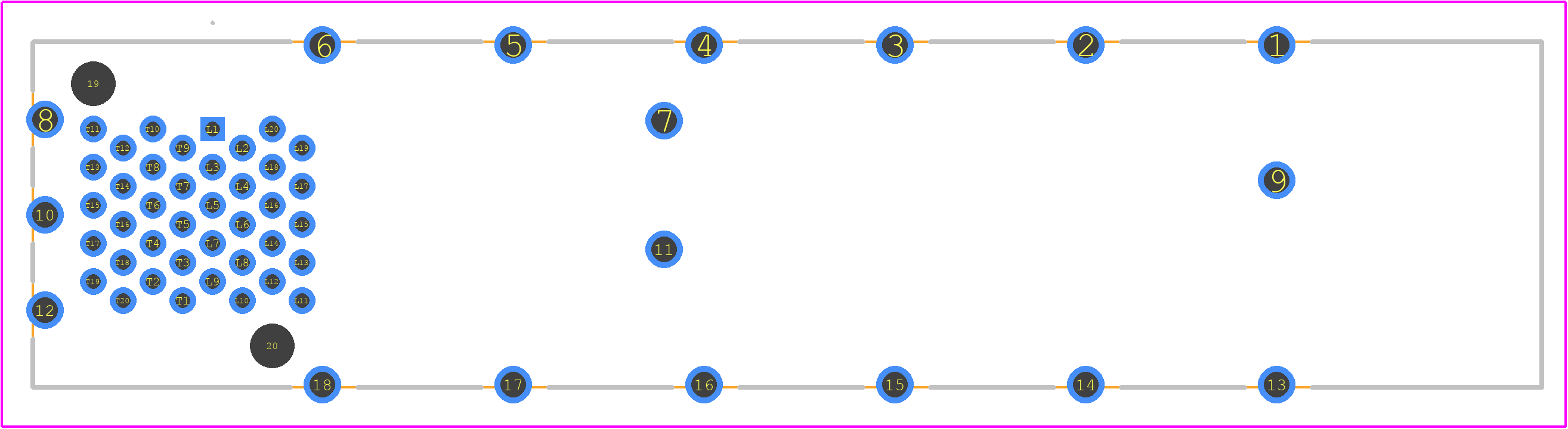

PCB Footprints
1658391-2 - TE Connectivity PCB footprint - Other - Other - 1658391-2
click to zoom
3D Models
1658391-2 - TE Connectivity - 3D model - Other - 1658391-2
click to zoom

1658391-2 Details

  • Manufacturer Part Number:

    1658391-2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    6 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • Connector Type:

    RECTANGULAR CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    .5A

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    0.5 A

  • Terminal Pitch:

    0.8 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    40

1658391-2 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 1658391-2 connector is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for mounting and securing the connector.
  • The 1658391-2 connector has a IP67 rating, making it suitable for outdoor use, but it's essential to ensure proper sealing and protection from environmental factors.
  • The operating temperature range for the 1658391-2 connector is -40°C to 125°C (-40°F to 257°F).
  • While it's technically possible, using a different wire gauge than recommended may affect the connector's performance and reliability. It's recommended to follow the manufacturer's guidelines for wire gauge and size.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1658391-2 Overview

Use the download button to access the 1658391-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 16583, or try a keyword search, such as Other Rectangular Connectors
