1658628-2 - TE Connectivity

Description: Configuration Features: Number of Ports 2 | Number of Positions 40 | Port Matrix Configuration 2 x 1 | Contact Features: Contact Current Rating (Max) .5 AMP | Electrical Characteristics: Data Rate (Max) 4 GBS | Housing Features: Centerline (Pitch) .03 INCH | Centerline (Pitch) .8 MM | Operation/Application: Circuit Application Signal | Pluggable I/O Applications SFP | Other: Included Lightpipe No | EMI Containment Feature Type Internal/External EMI Springs | Product Type Features: Pluggable I/O Product Type

Download 1658628-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1658628-2 - TE Connectivity - PCB symbol
click to zoom

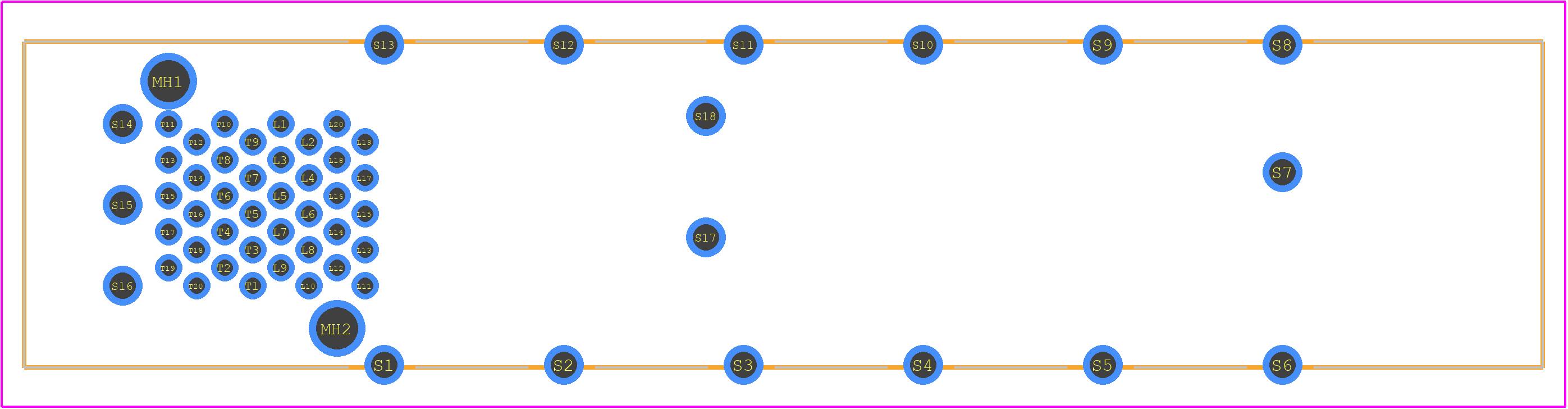

PCB Footprints
1658628-2 - TE Connectivity PCB footprint - Other - Other - 1658628-2-3
click to zoom
3D Models
1658628-2 - TE Connectivity - 3D model - Other - 1658628-2-3
click to zoom

1658628-2 Details

  • Manufacturer Part Number:

    1658628-2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    6 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Additional Feature:

    LOW PROFILE, OTHER STACKING CONNECTOR: 20 CONTACTS

  • Connector Type:

    SFP CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYESTER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    .5A

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    0.5 A

  • Terminal Pitch:

    0.8 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    40

  • UL Flammability Code:

    94V-0

1658628-2 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their support for specific guidance.
  • Yes, the 1658628-2 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 1658628-2 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • Yes, it's recommended to follow TE Connectivity's PCB layout guidelines to ensure proper clearance, spacing, and thermal management. Consult their application notes and design guides for more information.
  • The 1658628-2 connector is designed to withstand some environmental stressors, but it's essential to consult TE Connectivity's environmental testing data and application notes to determine its suitability for your specific application.
