1681720000 - Weidmüller

Description: PCB connector (board connection), 160 V, 17 A, Pitch in mm: 3.50, Number of poles: 10, THT solder connection, Box

Download 1681720000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1681720000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

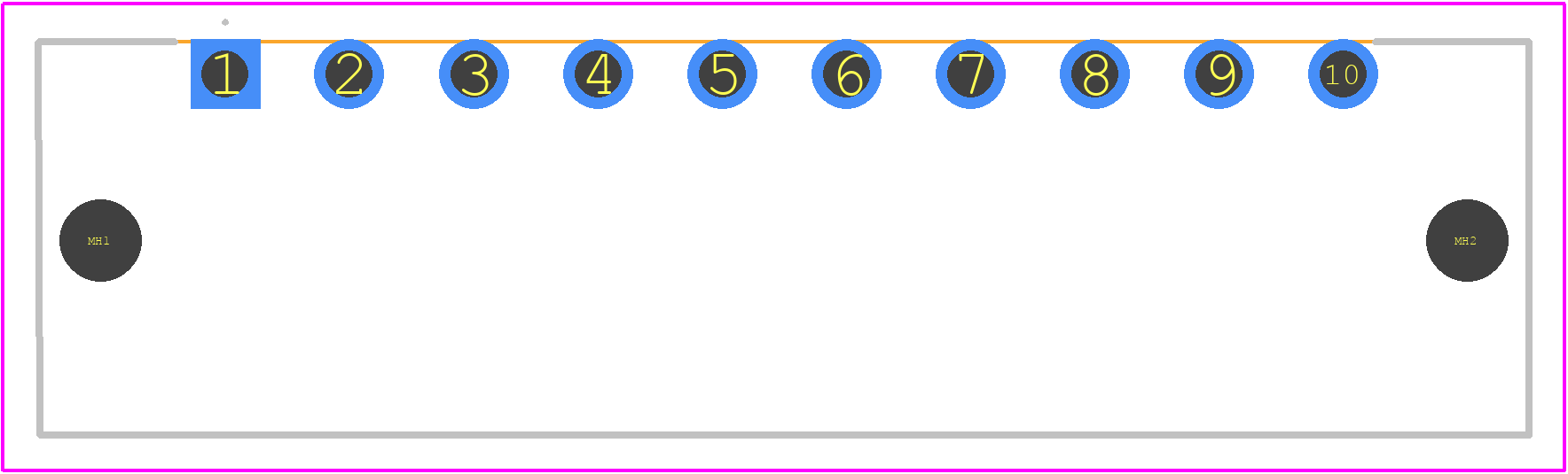

1681720000 - Weidmüller PCB footprint - Other - Other - 1681720000
click to zoom
3D Models
1681720000 - Weidmüller - 3D model - Other - 1681720000
click to zoom

1681720000 Details

  • Manufacturer Part Number:

    1681720000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    12 Weeks, 1 Day

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1681720000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1681720000 is -40°C to 85°C, according to Weidmüller's documentation.
  • Yes, the 1681720000 is RoHS and REACH compliant, meeting the European Union's regulations for hazardous substances and chemical safety.
  • The maximum current rating of the 1681720000 is 16 A, according to Weidmüller's specifications.
  • Yes, the 1681720000 is designed for use in harsh environments, including industrial and outdoor applications, and meets IP67 and IP69K ratings for protection against dust and water.
  • Yes, the 1681720000 is designed to be compatible with other Weidmüller products, including their range of connectors, cables, and interfaces.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1681720000 Overview

Use the download button to access the 1681720000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 16817, or try a keyword search, such as Terminals and Terminal Blocks
