1688586 - Phoenix Contact

Description: Modular Connectors / Ethernet Connectors 1P INSERT

Download 1688586 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1688586 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

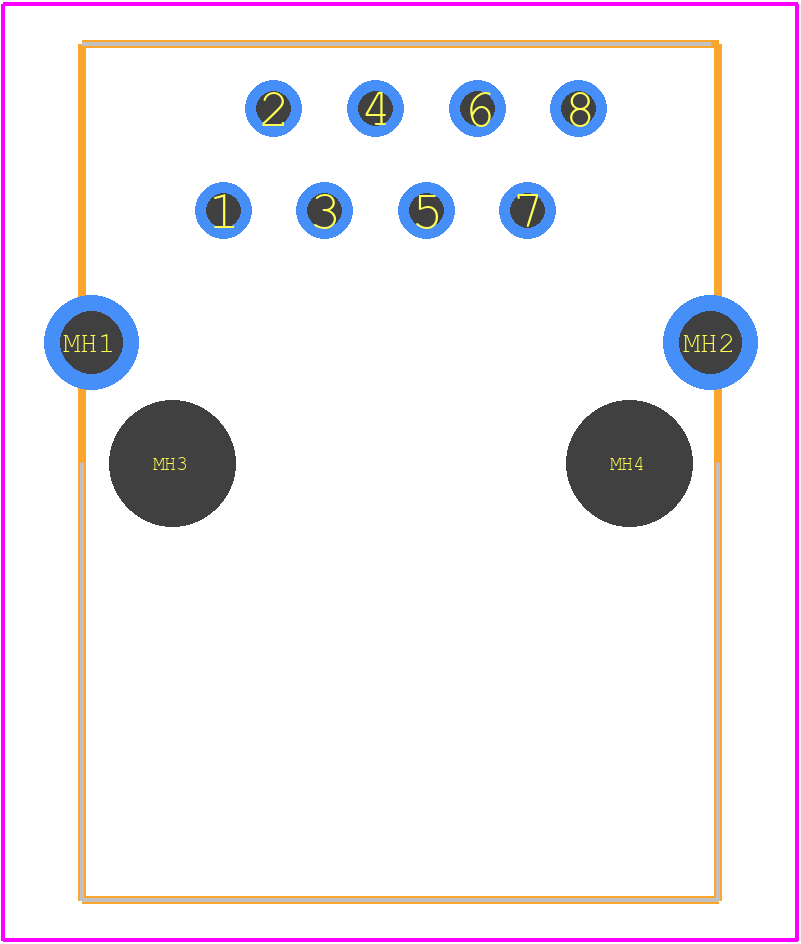

1688586 - Phoenix Contact PCB footprint - Other - Other - 1688586-1
click to zoom
3D Models
1688586 - Phoenix Contact - 3D model - Other - 1688586-1
click to zoom

1688586 Details

  • Manufacturer Part Number:

    1688586

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    0

  • Additional Feature:

    SHIELDED

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    GOLD OVER NICKEL

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

1688586 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, as specified in the Phoenix Contact's general assembly instructions.
  • Yes, the 1688586 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6, making it suitable for use in high-vibration environments.
  • The 1688586 connector has a protection rating of IP67, which means it can withstand temporary immersion in water and exposure to dust and other environmental factors, making it suitable for outdoor use.
  • While the datasheet specifies a recommended wire gauge, it's possible to use a different gauge with some limitations. However, it's essential to ensure the wire gauge meets the connector's minimum and maximum wire size specifications to maintain reliable connections.
  • To ensure proper grounding, make sure to connect the grounding pin on the connector to a suitable grounding point on the panel or device, following the manufacturer's instructions and relevant safety standards.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1688586 Overview

Use the download button to access the 1688586 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 16885, or try a keyword search, such as Telecom and Datacom Connectors

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
