- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 16PJ509
- Part Number 16PJ509
- Manufacturer Kobiconn
- Pin Count 3
- Part Category Connector
- Package Category Other
- Footprint Name Other - 16PJ509-1
- Released Date Sep 18, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
16PJ509 Details
-
Manufacturer Part Number:
16PJ509
-
Part Life Cycle Code:
Contact Manufacturer
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.10
-
Manufacturer:
Kobiconn
-
Audio Type:
STEREO
-
Body Breadth:
0.492 inch
-
Body Depth:
1.338 inch
-
Body Length:
0.55 inch
-
Body/Shell Style:
JACK
-
Configuration:
1X1 HORIZONTAL
16PJ509 Frequently Asked Questions (FAQs)
-
The recommended mating sequence is to mate the key first, followed by the shell, and then the contacts. This ensures proper alignment and prevents damage to the connector.
-
Yes, the 16PJ509 connector is designed to withstand high-vibration environments. However, it's essential to follow the recommended torque values and ensure proper mounting to prevent connector damage or disconnection.
-
The 16PJ509 connector has an operating temperature range of -40°C to 125°C. However, it's essential to note that the temperature rating may vary depending on the specific application and environmental conditions.
-
The 16PJ509 connector has a IP67 rating, which means it can withstand exposure to water and dust. However, it's not recommended for use in environments with exposure to harsh chemicals or extreme temperatures without proper protection or sealing.
-
The recommended cleaning method for the 16PJ509 connector is to use a soft-bristled brush and a mild detergent solution. Avoid using harsh chemicals, abrasive materials, or high-pressure cleaning methods, as they can damage the connector.
Trust Checks
Expert Contribution
System Verified
Community Approved
16PJ509 Overview

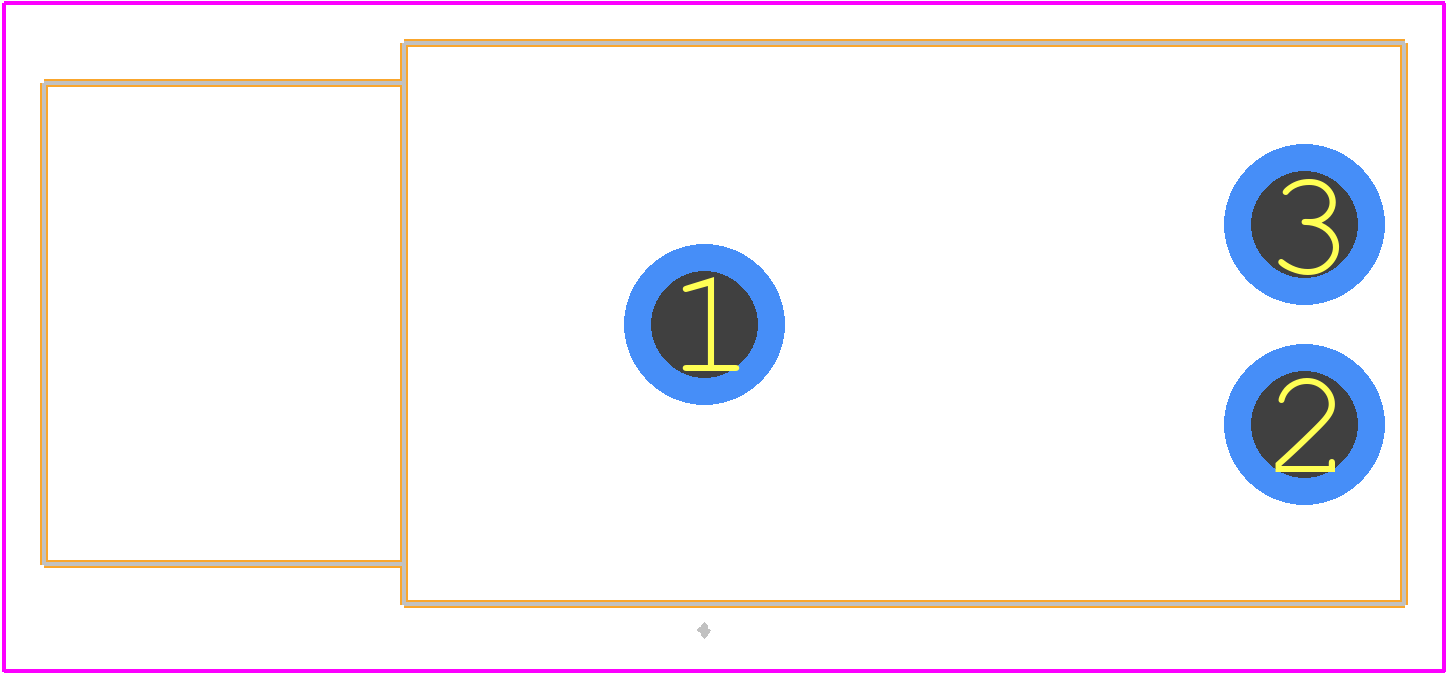

Use the download button to access the 16PJ509 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 16PJ5,
or try a keyword search, such as Audio/RCA Connectors
