1700121 - Phoenix Contact

1700121 Frequently Asked Questions (FAQs)

• What is the recommended torque for screwing the connector onto a PCB?
  The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material. It's essential to consult the Phoenix Contact application notes for more detailed guidance.
• Can I use this connector in high-vibration environments?
  Yes, the 1700121 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's crucial to ensure proper mounting and screwing to prevent loosening or damage.
• Is the connector suitable for use in humid or wet environments?
  The 1700121 connector has a IP20 rating, which means it's protected against solid objects larger than 12 mm, but not against water or moisture. For humid or wet environments, consider using a connector with a higher IP rating or applying additional sealing measures.
• Can I use this connector with wire sizes other than the recommended AWG 20-24?
  While the datasheet recommends AWG 20-24, the connector can accommodate smaller wire sizes (e.g., AWG 26-28) with some adjustments. However, using larger wire sizes may compromise the connector's reliability and performance. Consult Phoenix Contact's application notes or contact their support team for guidance.

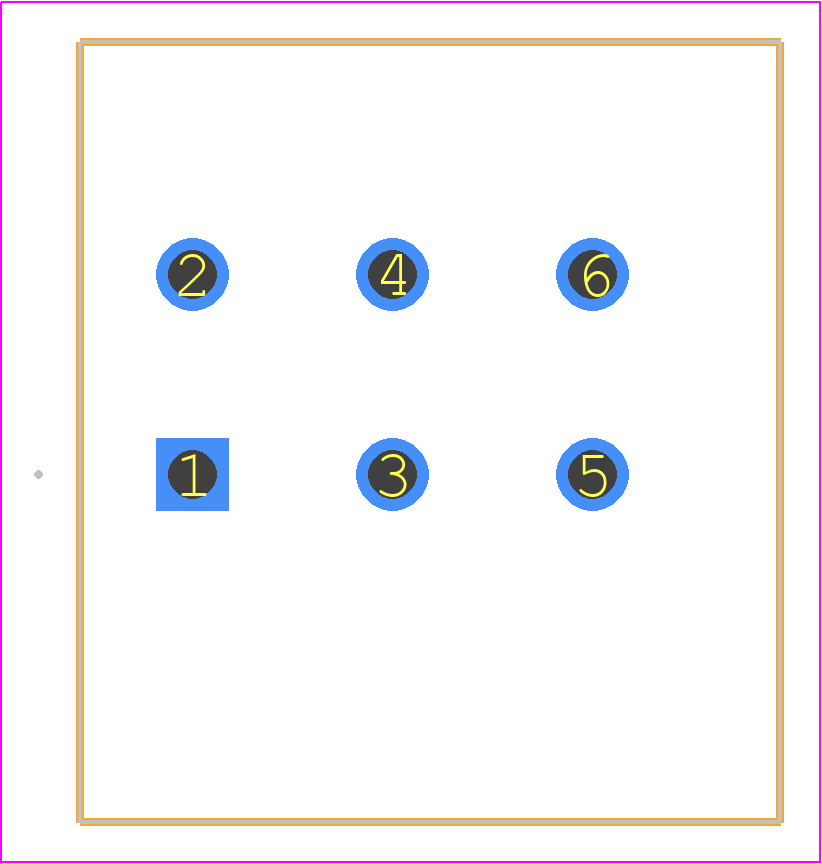

• Are there any specific PCB layout considerations for this connector?
  Yes, Phoenix Contact provides PCB layout recommendations to ensure proper connector operation and prevent damage. These include keeping the PCB surface clean, avoiding nearby components, and following the recommended pad layout and spacing.
