17011102204 - HARTING

Description: Harting Har-Bus HM Series 2mm Pitch Hard Metric Type A Backplane Connector, Male, Straight, 5 Row, 110 Way

Download 17011102204 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
17011102204 - HARTING - PCB symbol
click to zoom

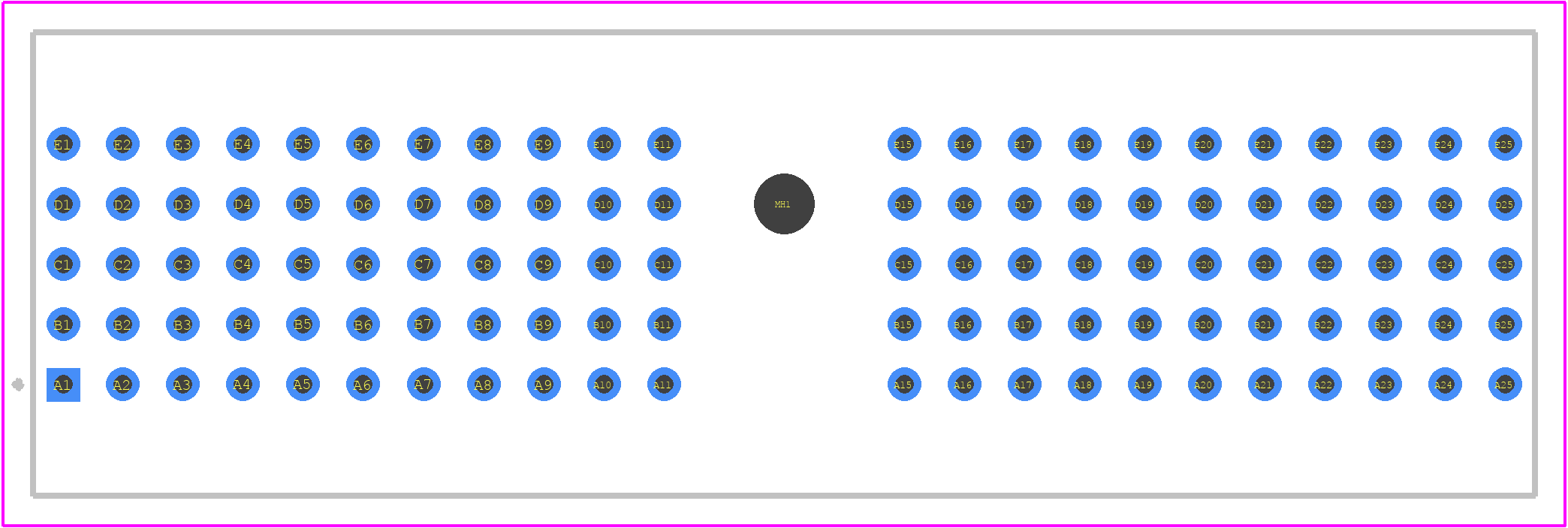

PCB Footprints
17011102204 - HARTING PCB footprint - Other - Other - 17011102204
click to zoom
3D Models
17011102204 - HARTING - 3D model - Other - 17011102204
click to zoom

17011102204 Details

  • Manufacturer Part Number:

    17011102204

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Italy

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: IEC 61076-4-101

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    5

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    110

  • UL Flammability Code:

    94V-0

17011102204 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 17011102204 connector is -40°C to 125°C, according to HARTING's specifications.
  • Yes, the 17011102204 connector is designed for outdoor use and meets the IP67 rating, which means it is protected against dust and water ingress.
  • The mating cycle of the 17011102204 connector is 500 cycles, according to HARTING's specifications.
  • Yes, the 17011102204 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, transportation, and other applications where vibration is a concern.
  • Yes, the 17011102204 connector is part of HARTING's Han series, which means it is compatible with other Han series connectors and accessories.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

17011102204 Overview

Use the download button to access the 17011102204 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17011, or try a keyword search, such as Headers and Edge Type Connectors
