17011102402 - HARTING

Description: Male connector, Press-in termination, Rated current: ‌1 A, Contacts: 110, Straight, Copper alloy, Au over Pd/Ni over Ni, Mating side, Nickel plated

Download 17011102402 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
17011102402 - HARTING - PCB symbol
click to zoom
PCB Footprints

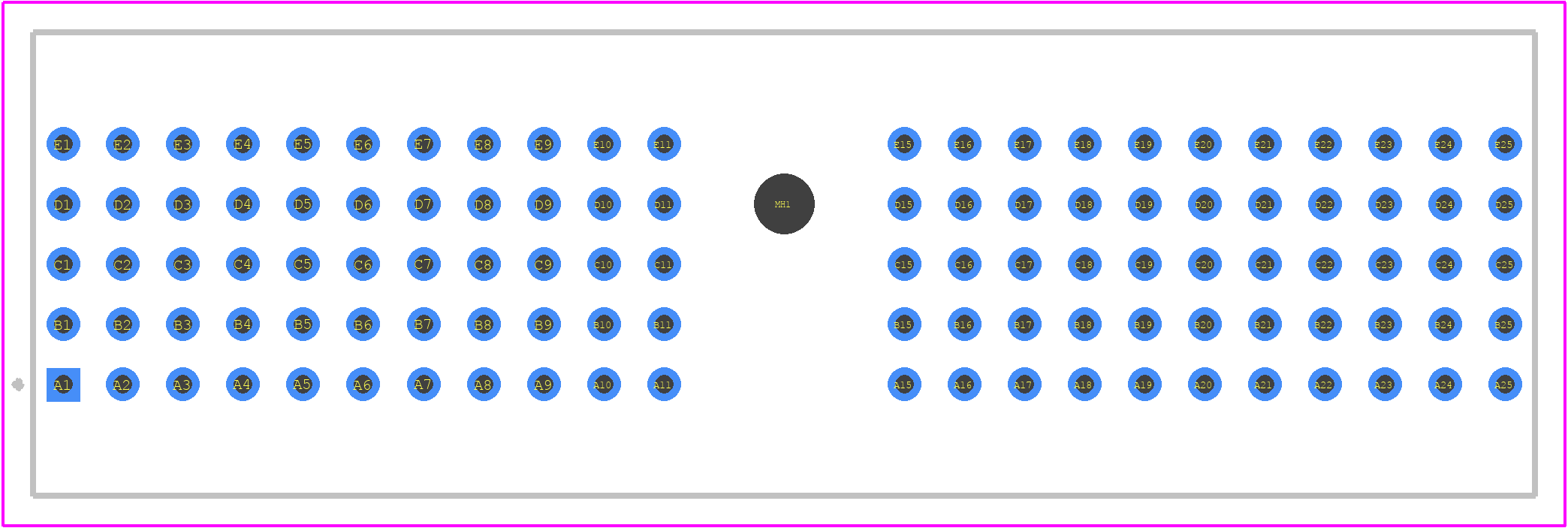

17011102402 - HARTING PCB footprint - Other - Other - 17011102402
click to zoom
3D Models
17011102402 - HARTING - 3D model - Other - 17011102402
click to zoom

17011102402 Details

  • Manufacturer Part Number:

    17011102402

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: IEC 61076-4-101

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    5

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    110

  • UL Flammability Code:

    94V-0

17011102402 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 17011102402 connector is -40°C to 125°C, according to HARTING's specifications.
  • Yes, the 17011102402 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, transportation, and other applications where vibration is a concern.
  • Yes, the 17011102402 connector is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's essential to consult HARTING's documentation and perform necessary testing to ensure the connector meets the specific requirements of your application.
  • The mating cycle life of the 17011102402 connector is typically rated for 500-1000 mating cycles, depending on the specific application and environmental conditions.
  • The 17011102402 connector is designed to be compatible with other HARTING products and components. However, compatibility with third-party components should be verified through testing and consultation with HARTING's documentation and technical support.
