Technical Content
Part Image

17011322203 - HARTING

Description: HM Male Type A, shielded, PL2, pins -AAAAAC

Download 17011322203 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
17011322203 - HARTING - PCB symbol
click to zoom

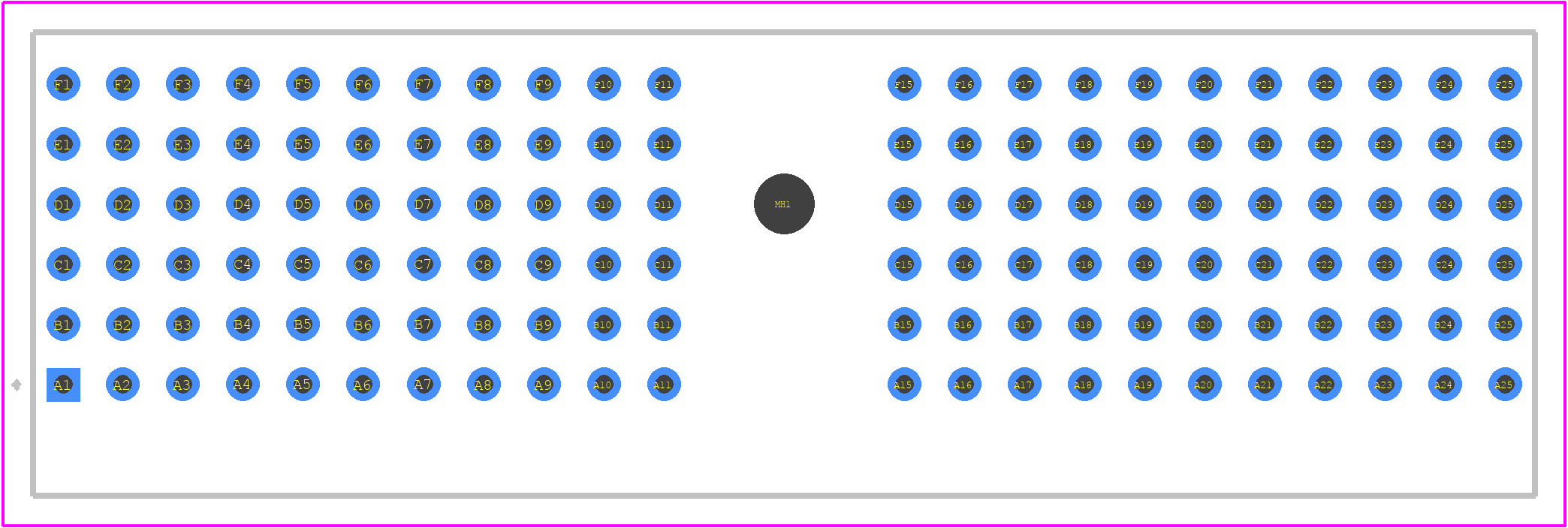

PCB Footprints
17011322203 - HARTING PCB footprint - Other - Other - 17011322203-3
click to zoom
3D Models
17011322203 - HARTING - 3D model - Other - 17011322203-3
click to zoom

17011322203 Details

  • Manufacturer Part Number:

    17011322203

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    6

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    132

  • UL Flammability Code:

    94V-0

17011322203 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.4 Nm to 0.6 Nm, as specified in the HARTING application notes.
  • Yes, the 17011322203 connector is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10g acceleration.
  • Yes, the 17011322203 connector has an IP67 rating, making it suitable for outdoor use and resistant to dust and water ingress.
  • The 17011322203 connector has an operating temperature range of -40°C to 125°C, making it suitable for use in a wide range of applications.
  • Yes, the 17011322203 connector is designed to be flexible and can accommodate cables with diameters ranging from 2.5 mm to 6.5 mm.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

17011322203 Overview

Use the download button to access the 17011322203 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17011, or try a keyword search, such as Headers and Edge Type Connectors
