17011541205 - HARTING

Description: HM Male Type A, shielded, PL1, pins CBBBBBC

Download 17011541205 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
17011541205 - HARTING - PCB symbol
click to zoom
PCB Footprints

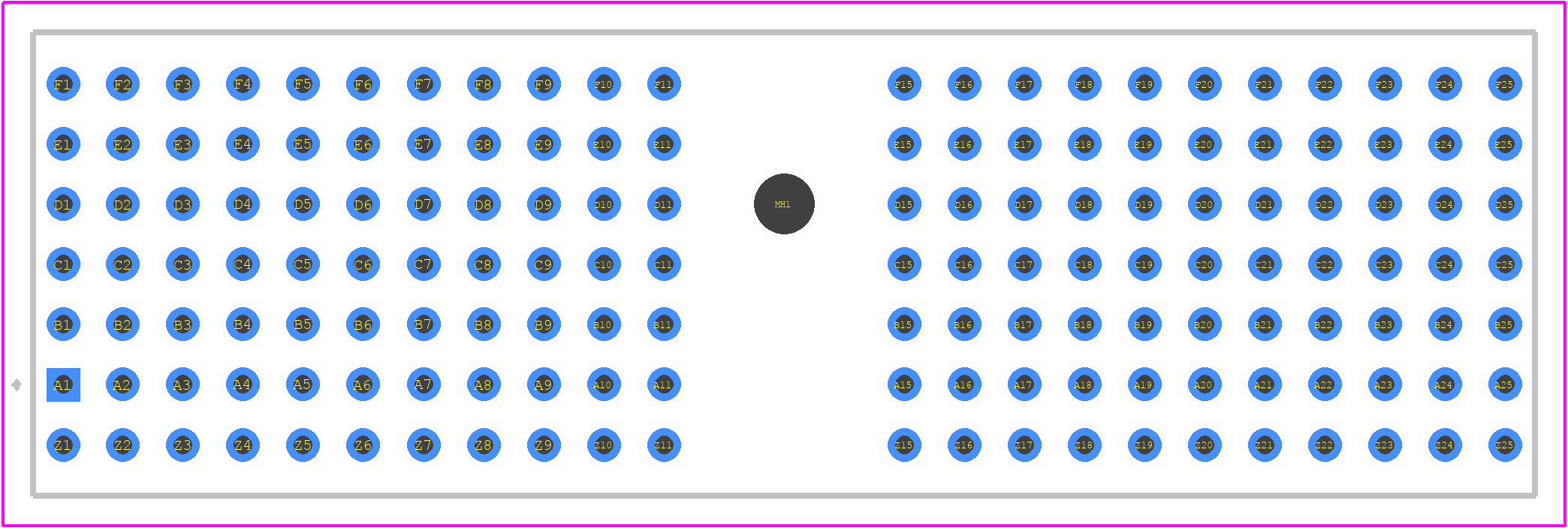

17011541205 - HARTING PCB footprint - Other - Other - 17011541205-2
click to zoom
3D Models
17011541205 - HARTING - 3D model - Other - 17011541205-2
click to zoom

17011541205 Details

  • Manufacturer Part Number:

    17011541205

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    7

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    154

  • UL Flammability Code:

    94V-0

17011541205 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 17011541205 connector is -40°C to 125°C, as per the IEC 61984 standard.
  • Yes, the 17011541205 connector is designed to withstand high-vibration environments, making it suitable for applications in industrial, transportation, and aerospace industries.
  • Yes, the 17011541205 connector is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's essential to consult the datasheet and HARTING's application notes for specific guidance on environmental considerations.
  • The 17011541205 connector has a mating cycle life of at least 500 cycles, ensuring reliable connections even in applications with frequent mating and unmating.
  • The 17011541205 connector is part of the HARTING Han series and is compatible with other Han series connectors. However, it's essential to verify compatibility with specific connectors and applications by consulting the datasheet and HARTING's documentation.
