17011542603 - HARTING

Description: Connectors, Male connector, Press-in termination, Rated current: ?1 A, Contacts: 154, Straight

Download 17011542603 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
17011542603 - HARTING - PCB symbol
click to zoom

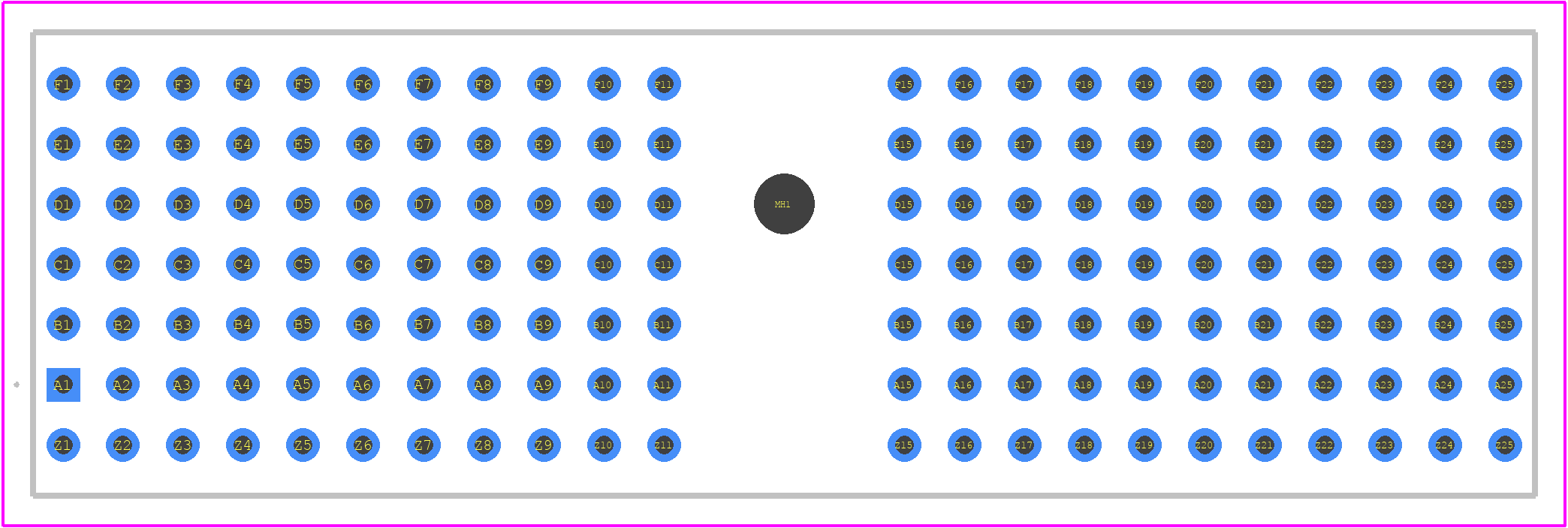

PCB Footprints
17011542603 - HARTING PCB footprint - Other - Other - 17011542603-1
click to zoom
3D Models
17011542603 - HARTING - 3D model - Other - 17011542603-1
click to zoom

17011542603 Details

  • Manufacturer Part Number:

    17011542603

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    7

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    154

  • UL Flammability Code:

    94V-0

17011542603 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 17011542603 connector is -40°C to 125°C, according to HARTING's specifications.
  • Yes, the 17011542603 connector is designed for outdoor use and meets the IP67 rating, which means it is protected against dust and water ingress.
  • The mating cycle of the 17011542603 connector is 500 cycles, according to HARTING's specifications.
  • Yes, the 17011542603 connector is designed to withstand high-vibration environments and meets the IEC 61373 Cat. 2 standard for vibration resistance.
  • Yes, the 17011542603 connector is part of the HARTING Han series and is compatible with other Han series connectors, but it's recommended to check the specific mating compatibility before use.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

17011542603 Overview

Use the download button to access the 17011542603 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17011, or try a keyword search, such as Headers and Edge Type Connectors
