17011542604 - HARTING

Description: HM Male Type A, shielded, PL2, pins TSSSSST, Compact PCI P1

Download 17011542604 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
17011542604 - HARTING - PCB symbol
click to zoom

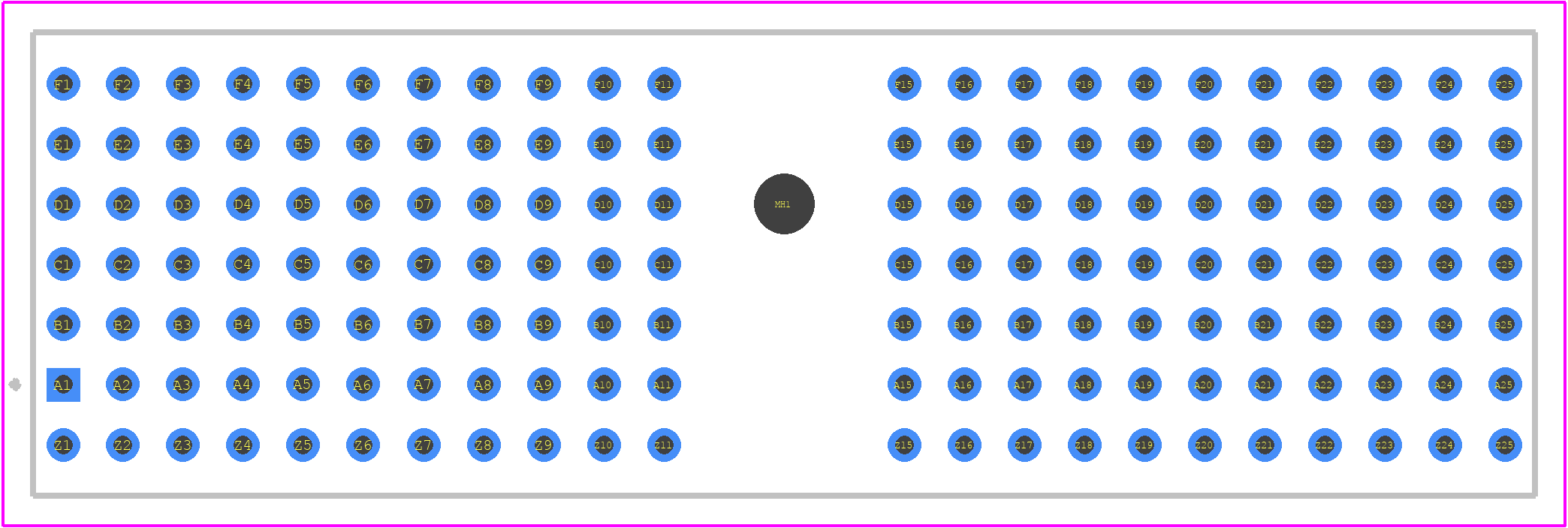

PCB Footprints
17011542604 - HARTING PCB footprint - Other - Other - 17011542604
click to zoom
3D Models
17011542604 - HARTING - 3D model - Other - 17011542604
click to zoom

17011542604 Details

  • Manufacturer Part Number:

    17011542604

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    7

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    154

  • UL Flammability Code:

    94V-0

17011542604 Frequently Asked Questions (FAQs)

  • The recommended torque is typically between 0.5 Nm to 1.5 Nm, but it's best to consult the specific PCB design and HARTING's application notes for precise guidance.
  • Yes, the 17011542604 connector is designed to withstand vibrations and shocks according to IEC 61373 Cat 2, but it's essential to ensure proper mounting and screwing to the PCB to maintain reliability.
  • The 17011542604 connector is rated for operating temperatures between -40°C to 125°C and can withstand humidities up to 95% RH, but it's crucial to consider additional sealing or protective measures for extreme environments.
  • While the 17011542604 connector is designed to be compatible with HARTING's mating connectors, compatibility with other manufacturers' connectors is not guaranteed and may require additional testing and validation.
  • The maximum current rating for the 17011542604 connector is typically 1 A per contact, but it's essential to consult the specific application and HARTING's documentation for precise guidance on current handling.
