1701540 - Phoenix Contact

Description: DFK-PC 6-16/ 3-GF-10,16 - Feed-through header, nominal cross section: 16 mm<sup>2</sup>, color: green, nominal current: 76 A, rated voltage (III/2): 1000 V, contact surface: Ag, contact connection type: Pin, number of potentials: 3, number of rows: 1, number of positions: 3, number of connections: 3, product range: DFK-PC 6-16/..-GF, pitch: 10.16 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 4.1 mm, number of solder pins per potential: 3, plug-in system: COMBICON PC 16, Pin conne

Download 1701540 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1701540 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

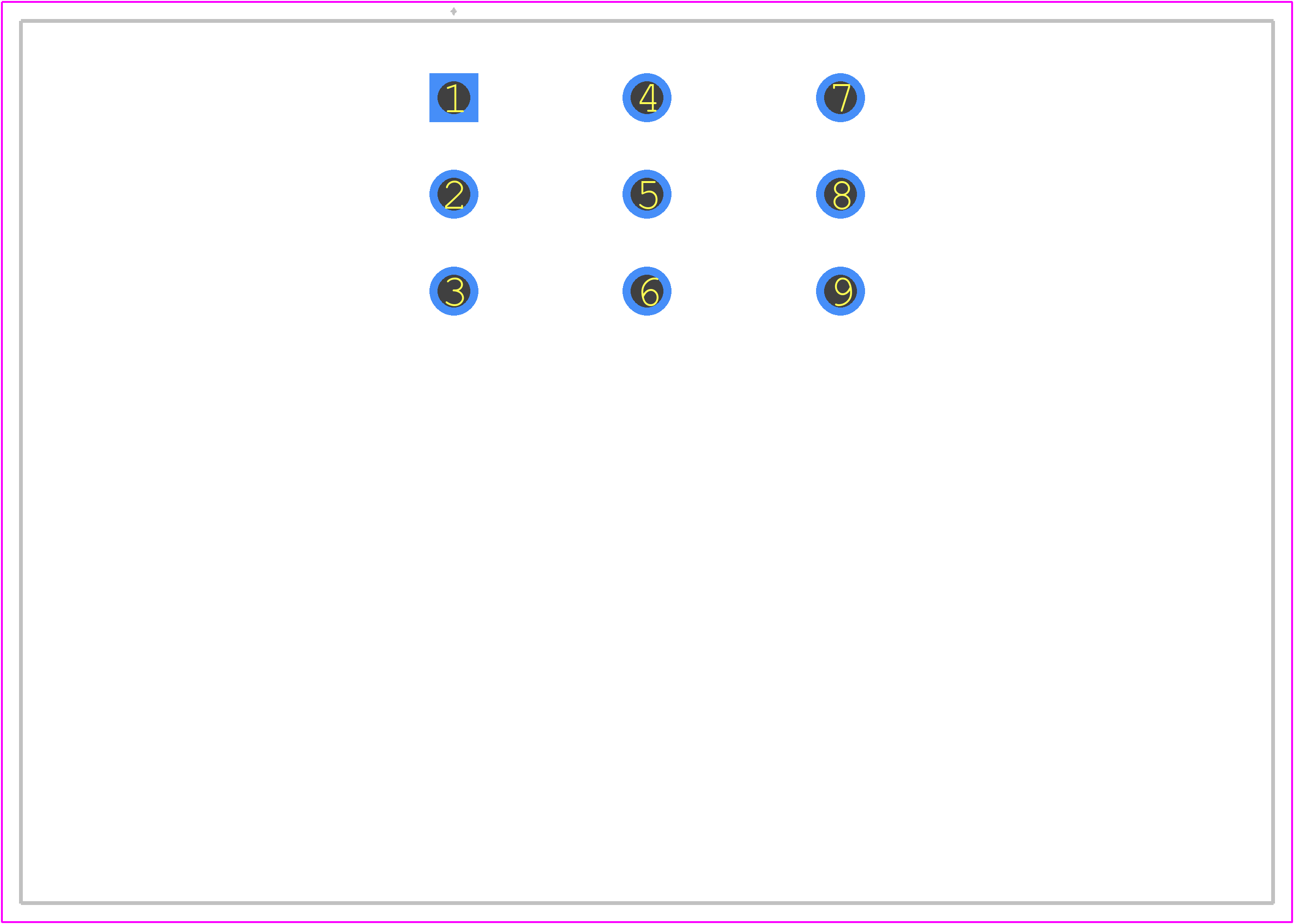

1701540 - Phoenix Contact PCB footprint - Other - Other - 1701540
click to zoom
3D Models
1701540 - Phoenix Contact - 3D model - Other - 1701540
click to zoom

1701540 Details

  • Manufacturer Part Number:

    1701540

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    0

  • Additional Feature:

    PA, UL 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD AND PANEL

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    3

  • Rated Current:

    76 A

  • Rated Voltage:

    1000 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    16 mm2

  • Wire Gauge:

    5 AWG

1701540 Frequently Asked Questions (FAQs)

  • The recommended torque for screw termination is 0.5 Nm to 1.5 Nm, depending on the wire size and type. It's essential to follow the torque specification to ensure reliable connections.
  • Yes, the 1701540 connector is designed to withstand high-vibration environments. It meets the requirements of DIN EN 61373, which specifies the testing of railway applications subject to vibration.
  • The 1701540 connector has a IP67 rating, which means it is protected against dust and temporary immersion in water. However, it's essential to ensure proper sealing and installation to maintain the IP rating in outdoor environments.
  • While the datasheet specifies certain wire sizes, it's possible to use the 1701540 connector with other wire sizes. However, it's crucial to consult with Phoenix Contact's technical support or a qualified engineer to ensure the connector's performance and reliability.
  • The 1701540 connector has a maximum operating temperature of 120°C (248°F). Exceeding this temperature may affect the connector's performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1701540 Overview

Use the download button to access the 1701540 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17015, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
