1701579 - Phoenix Contact

Description: DFK-PC 6-16/ 6-GF-10,16 - Feed-through header, nominal cross section: 16 mm<sup>2</sup>, color: green, nominal current: 76 A, rated voltage (III/2): 1000 V, contact surface: Ag, contact connection type: Pin, number of potentials: 6, number of rows: 1, number of positions: 6, number of connections: 6, product range: DFK-PC 6-16/..-GF, pitch: 10.16 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 4.1 mm, number of solder pins per potential: 3, plug-in system: COMBICON PC 16, Pin conne

Download 1701579 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1701579 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

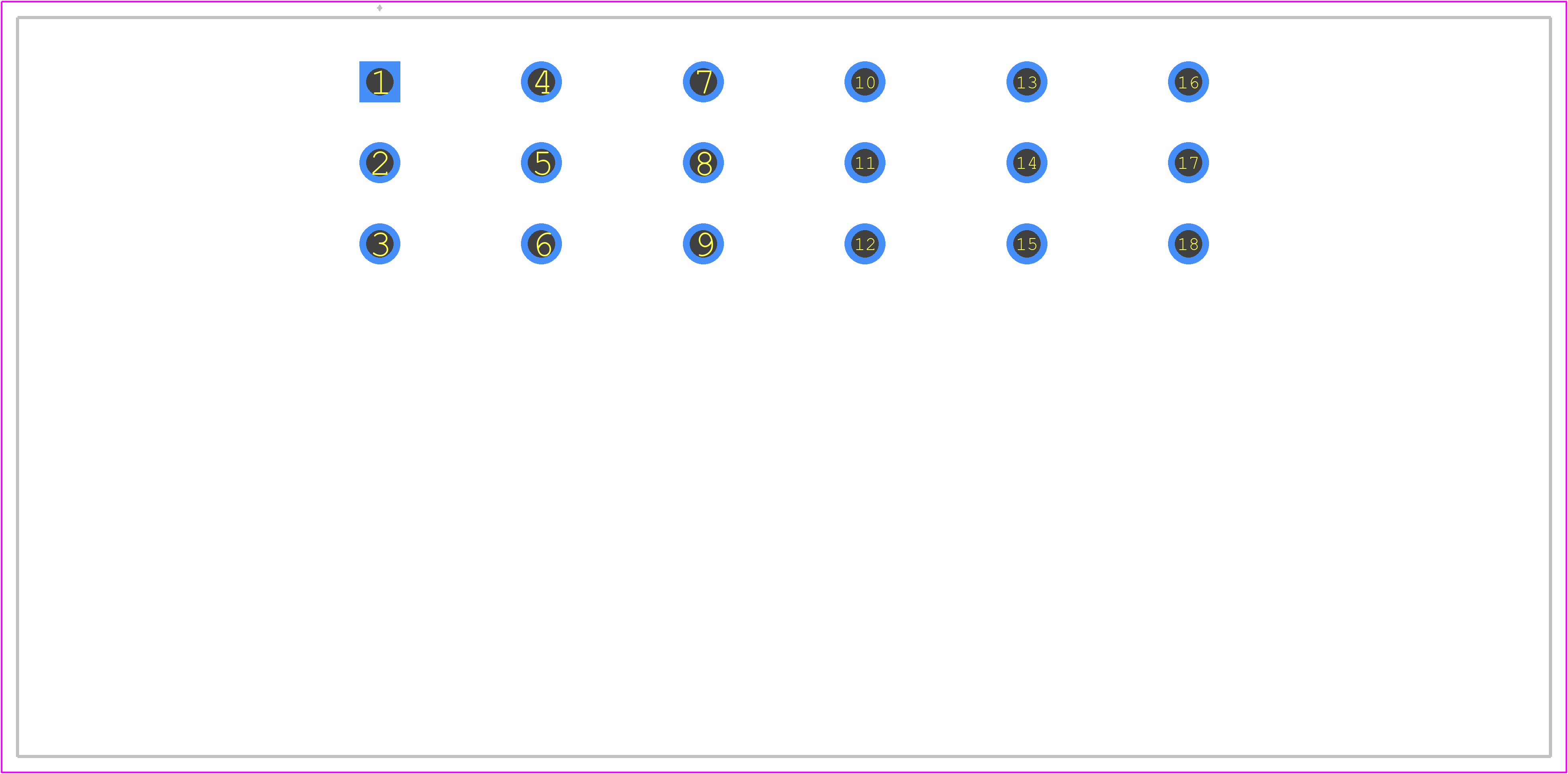

1701579 - Phoenix Contact PCB footprint - Other - Other - 1701579
click to zoom
3D Models
1701579 - Phoenix Contact - 3D model - Other - 1701579
click to zoom

1701579 Details

  • Manufacturer Part Number:

    1701579

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    0

  • Additional Feature:

    PA, UL 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD AND PANEL

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    76 A

  • Rated Voltage:

    1000 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    16 mm2

  • Wire Gauge:

    5 AWG

1701579 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material. It's essential to consult the Phoenix Contact application notes for more detailed guidance.
  • Yes, the 1701579 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's crucial to ensure proper mounting and screwing to prevent loosening or damage.
  • The 1701579 connector is rated for operation in temperatures ranging from -40°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to consult the datasheet and Phoenix Contact's environmental specifications for more detailed information.
  • No, the 1701579 connector is designed for use with wire gauges AWG 24 to AWG 30. Using a larger wire gauge may compromise the connector's performance and reliability.
  • Yes, it's essential to follow Phoenix Contact's recommended PCB layout guidelines to ensure proper connector operation and prevent damage. This includes maintaining a minimum clearance of 1.5 mm around the connector and avoiding vias or through-holes under the connector.
