The recommended torque is typically between 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material. It's essential to consult the HARTING application notes or contact their technical support for specific guidance.
Yes, the 17030552202 connector is designed to meet the requirements of IEC 61984, which includes vibration and shock testing. However, it's crucial to ensure that the connector is properly mounted and secured to the PCB to maintain its integrity in such environments.
The 17030552202 connector is rated for operation in temperatures ranging from -40°C to +125°C. However, it's essential to note that the temperature range may vary depending on the specific application and the materials used in the connector and PCB.
The 17030552202 connector has a IP67 rating, which means it is protected against dust and temporary immersion in water. However, it's essential to consult the HARTING datasheet and application notes for specific guidance on using the connector in harsh environments, as additional protection or sealing may be required.
The 17030552202 connector is designed for use with standard FR4 PCBs with a thickness of 1.6 mm. However, it may be possible to use the connector with other PCB materials or thicknesses, but this would require consultation with HARTING's technical support and potentially custom testing and validation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
17030552202 Overview

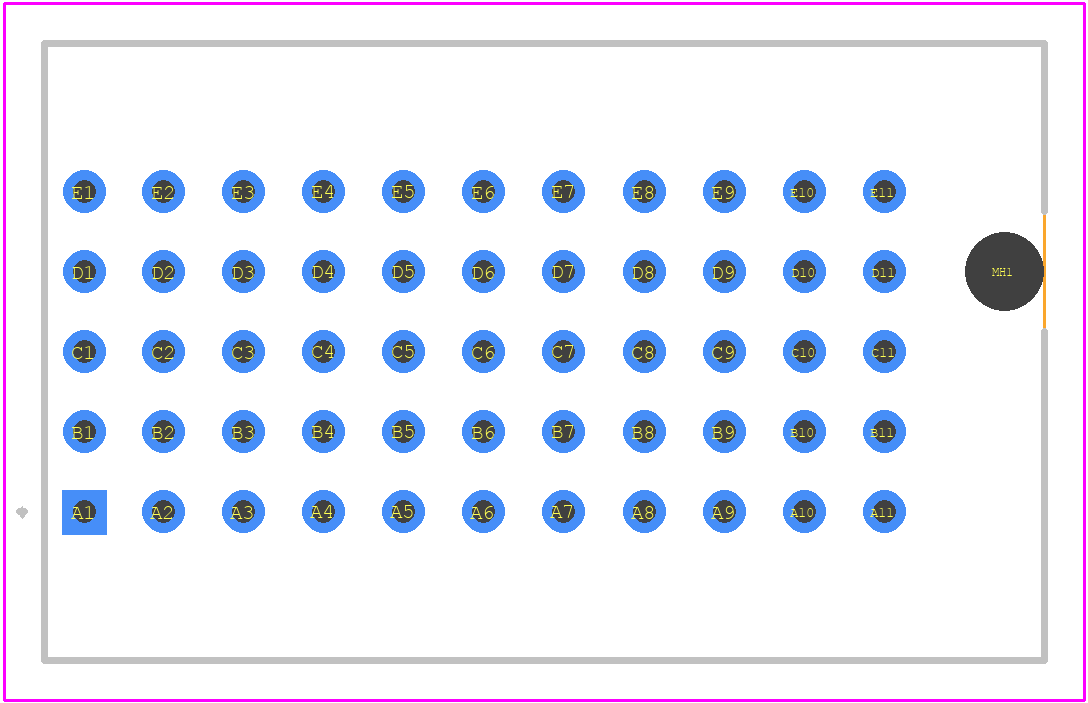

Use the download button to access the 17030552202 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17030,
or try a keyword search, such as Headers and Edge Type Connectors
