17041541002 - HARTING

Description: Connectors, Male connector, Press-in termination, Rated current: ?1 A, Contacts: 154, Straight

Download 17041541002 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
17041541002 - HARTING - PCB symbol
click to zoom
PCB Footprints

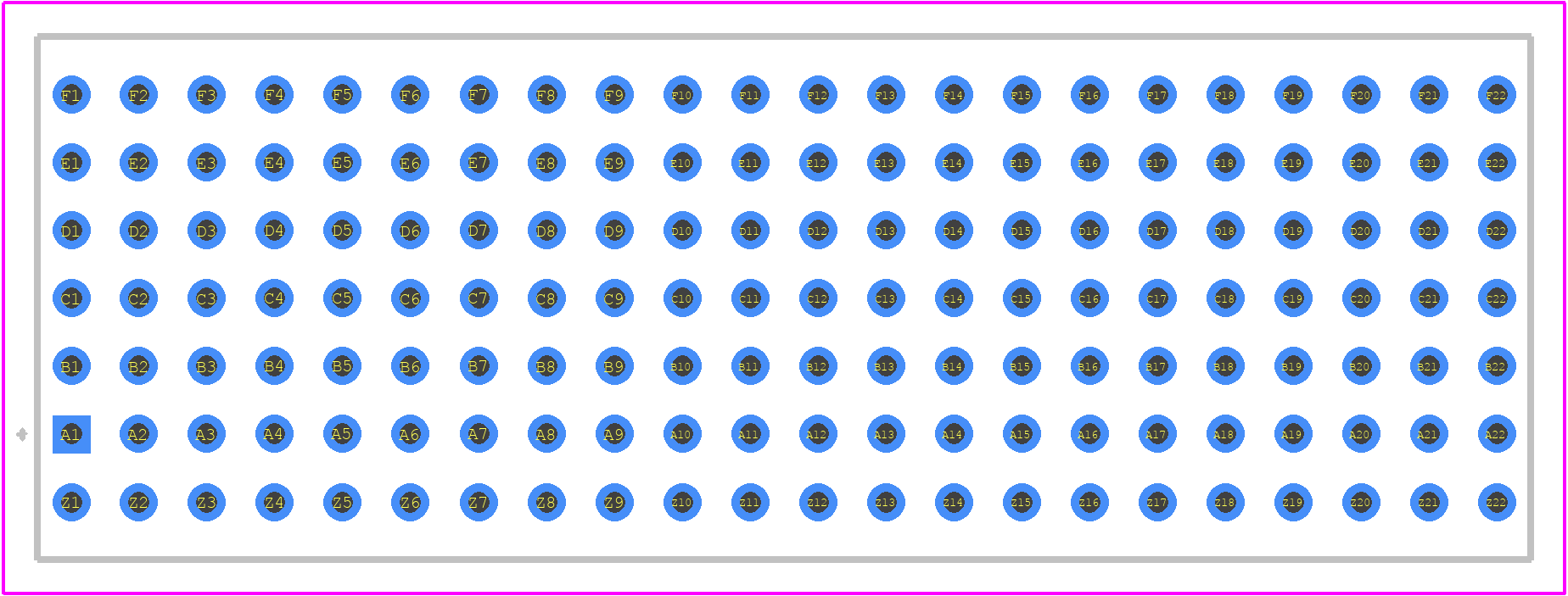

17041541002 - HARTING PCB footprint - Other - Other - 17041541002-1
click to zoom
3D Models
17041541002 - HARTING - 3D model - Other - 17041541002-1
click to zoom

17041541002 Details

  • Manufacturer Part Number:

    17041541002

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    7

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    154

  • UL Flammability Code:

    94V-0

17041541002 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 17041541002 connector is -40°C to 125°C, making it suitable for use in a wide range of industrial and harsh environments.
  • Yes, the 17041541002 connector is designed to withstand high-vibration environments, making it suitable for use in applications such as industrial machinery, transportation, and aerospace.
  • The 17041541002 connector has an IP67 rating, which means it is protected against dust ingress and can withstand immersion in water up to 1 meter for 30 minutes.
  • Yes, the 17041541002 connector is designed to meet the requirements of the ATEX and IECEx standards for use in explosive atmospheres, making it suitable for use in hazardous environments.
  • The 17041541002 connector has a mating cycle life of at least 500 cycles, ensuring reliable connections over an extended period.
