17041541010 - HARTING

Description: HM Male Type B22, shielded, PL1, pins TC-SSSSS-TC (AB Friendly)

Download 17041541010 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
17041541010 - HARTING - PCB symbol
click to zoom

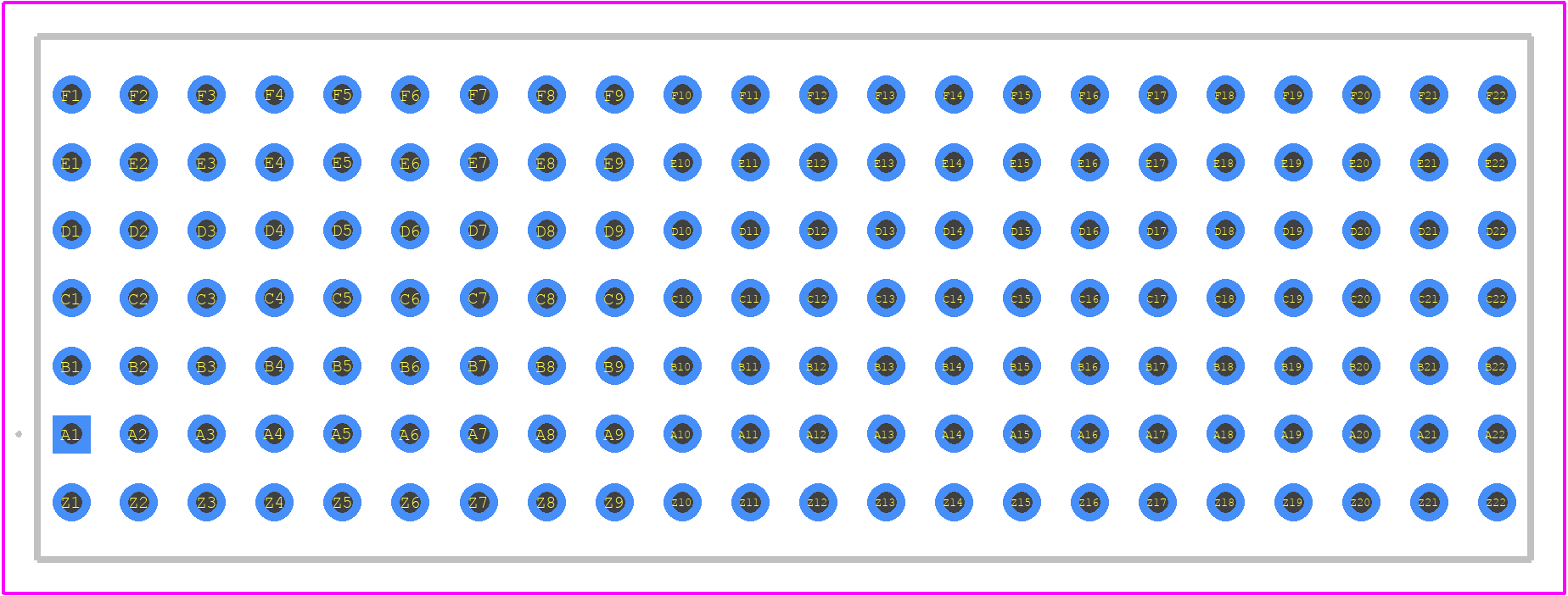

PCB Footprints
17041541010 - HARTING PCB footprint - Other - Other - 17041541010-1
click to zoom
3D Models
17041541010 - HARTING - 3D model - Other - 17041541010-1
click to zoom

17041541010 Details

  • Manufacturer Part Number:

    17041541010

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    7

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    154

  • UL Flammability Code:

    94V-0

17041541010 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 17041541010 connector is -40°C to 125°C, according to HARTING's specifications.
  • Yes, the 17041541010 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, transportation, and other applications where vibration is a concern.
  • Yes, the 17041541010 connector is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's essential to consult HARTING's documentation and perform necessary testing to ensure the connector meets the specific requirements of your application.
  • The mating cycle life of the 17041541010 connector is typically rated for 500-1000 mating cycles, depending on the specific application and environmental conditions.
  • The 17041541010 connector is designed to be compatible with other HARTING products and components. However, compatibility with third-party components should be verified through testing and consultation with HARTING's documentation and technical support.
