Technical Content
Part Image

17041541201 - HARTING

Description: HM Male Type B22, shielded, PL1, pins CAAAAAC

Download 17041541201 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
17041541201 - HARTING - PCB symbol
click to zoom

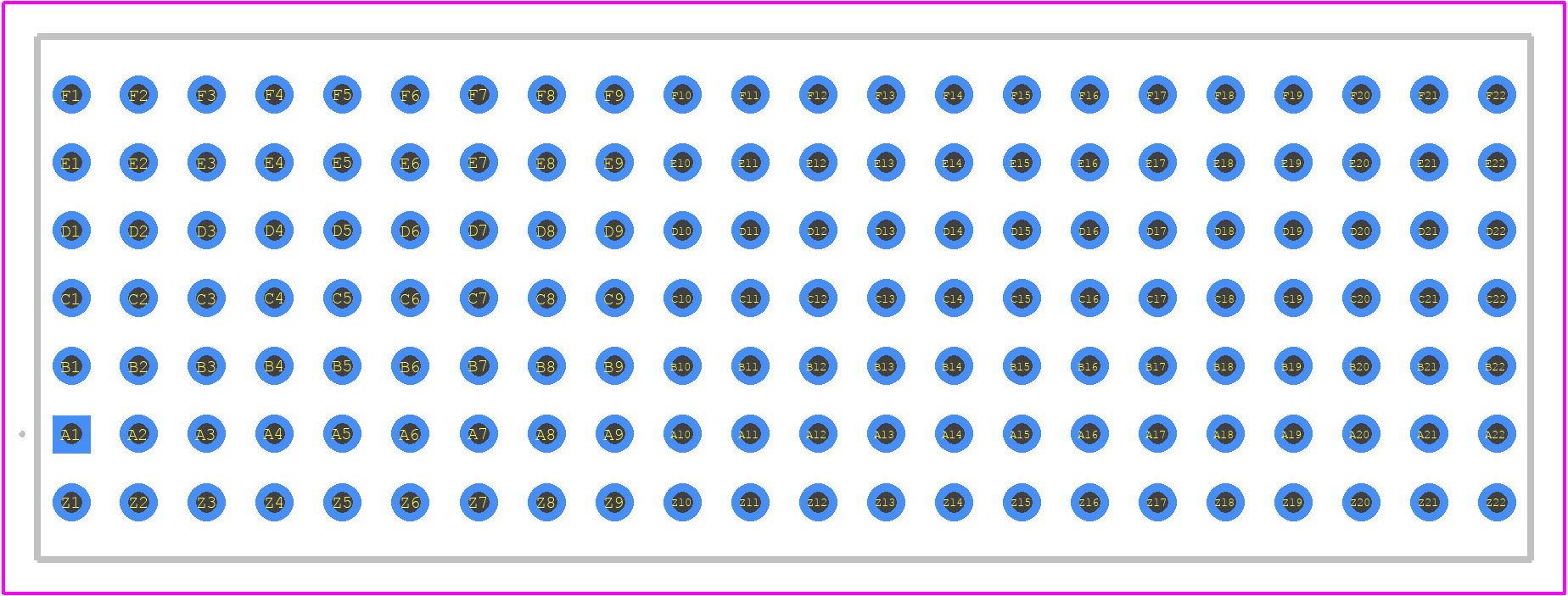

PCB Footprints
17041541201 - HARTING PCB footprint - Other - Other - 17041541201-1
click to zoom
3D Models
17041541201 - HARTING - 3D model - Other - 17041541201-1
click to zoom

17041541201 Details

  • Manufacturer Part Number:

    17041541201

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    7

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    154

  • UL Flammability Code:

    94V-0

17041541201 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 17041541201 connector is -40°C to 125°C, as per the IEC 61984 standard.
  • Yes, the 17041541201 connector is designed to withstand high-vibration environments, making it suitable for applications in industrial, transportation, and aerospace industries.
  • Yes, the 17041541201 connector is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's essential to consult the datasheet and HARTING's application notes for specific guidance on environmental considerations.
  • The 17041541201 connector has a mating cycle life of at least 500 cycles, ensuring reliable connections even in applications with frequent mating and unmating.
  • The 17041541201 connector is part of the HARTING Han series and is compatible with other Han series connectors. However, it's essential to verify compatibility with specific connectors and applications by consulting the datasheet and HARTING's documentation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

17041541201 Overview

Use the download button to access the 17041541201 schematic symbol, PCB footprint, and 3D model.
