17041542204 - HARTING

Description: HM Male Type B22, shielded, PL2, special loading - see drawing

Download 17041542204 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
17041542204 - HARTING - PCB symbol
click to zoom
PCB Footprints

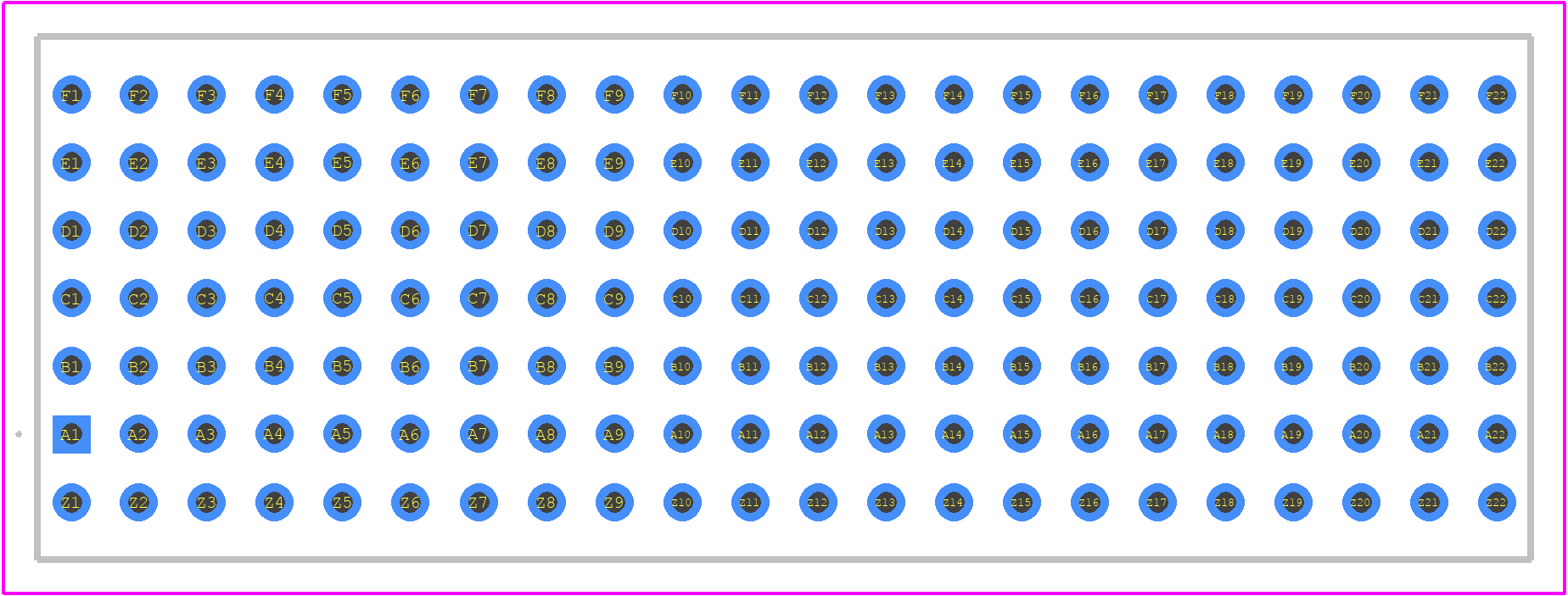

17041542204 - HARTING PCB footprint - Other - Other - 17041542204-1
click to zoom
3D Models
17041542204 - HARTING - 3D model - Other - 17041542204-1
click to zoom

17041542204 Details

  • Manufacturer Part Number:

    17041542204

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    7

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    154

  • UL Flammability Code:

    94V-0

17041542204 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 17041542204 connector is -40°C to 125°C, as per the IEC 61984 standard.
  • Yes, the 17041542204 connector is designed to withstand high-vibration environments, making it suitable for applications in industrial, transportation, and aerospace industries.
  • The 17041542204 connector has an IP67 rating, which means it is protected against dust ingress and can withstand immersion in water up to 1 meter for 30 minutes.
  • Yes, the 17041542204 connector is designed to resist corrosion and can withstand exposure to harsh chemicals, including fuels, oils, and cleaning agents.
  • The 17041542204 connector has a mating cycle life of at least 500 cycles, ensuring reliable connections even in demanding applications.
